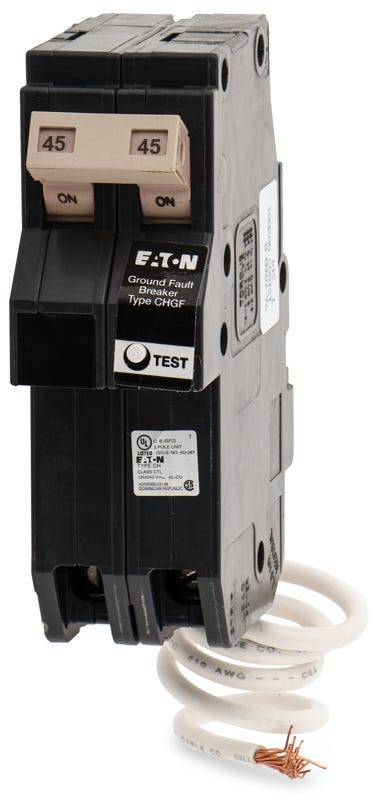

The Eaton CH245GFT is a 2 Pole molded case ground fault circuit breaker with a current rating of 45 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC@240V. The CH245GFT has a plug-on connection type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | CH |
| Amperage | 45 |
| Voltage | 120/240VAC |
| Poles | 2 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 10kAIC@240V |
| Frame Type | CH |
| Connection Type | Plug-on |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Wire Gauge | #14 to 4 AWG |
| Temperature Rating | 60°C |
| Circuit Breaker Type | GFCI |
| Mpn | CH245GFT |
| Upc | 786676026819 |
