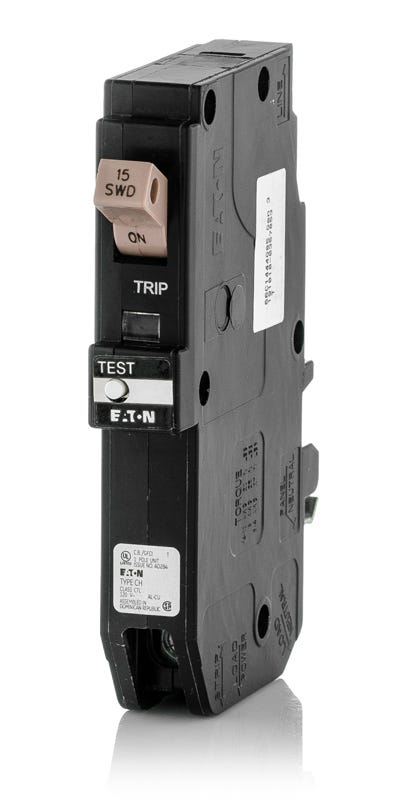

The Eaton CHFGFT115PN is a 1 pole thermal magnetic molded case GFCI circuit breaker with a current rating of 15 amps and a voltage rating of 120/240 v ac. It has an interrupt rating of 10 kAIC. The CHFGFT115PN has a plug-on mounting type and includes long time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | CH |
| Amperage | 15 A |
| Voltage | 120/240 V AC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Plug-On |
| Approval | UL |
| Interrupting Rating | 10 kAIC |
| Frame Type | CH |
| Connection Type | Plug-on Neutral |
| Functions | Long Time and Instantaneous Trip |
| Temperature Rating | 40°C |
| Circuit Breaker Type | CHFGF |
| Upc | 786680117534 |
