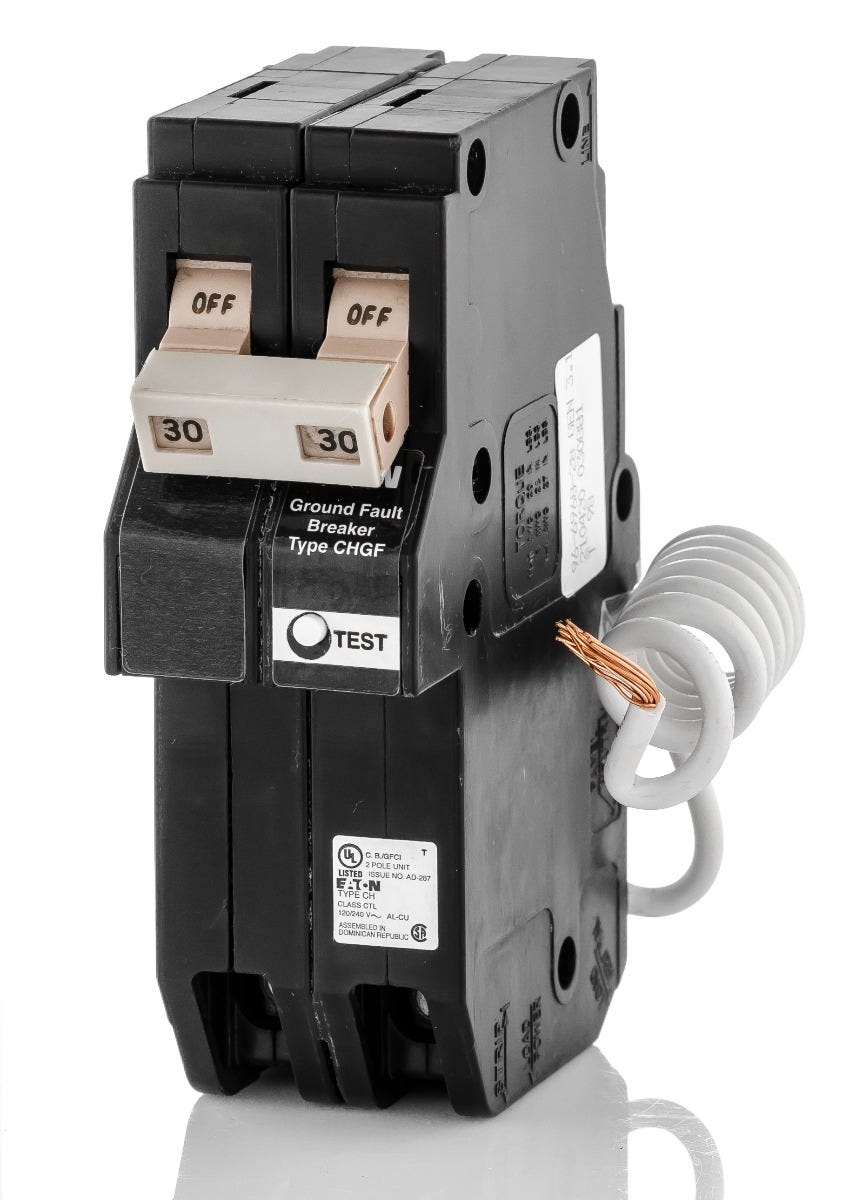

The Eaton CHN230GF is a 2 Pole thermal magnetic molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120/240V. It has an interrupting rating of 10kAIC. The CHN230GF has a plug-in connection type and includes long-time and instantaneous trip functions.
| Brand | Eaton |
|---|---|
| Series | CH |
| Amperage | 30 |
| Voltage | 120/240 V |
| Poles | 2 |
| Phase | 1 |
| Approval | UL |
| Interrupting Rating | 10 kAIC |
| Frame Type | CH |
| Connection Type | Plug-In |
| Protection | 5 mA |
| Functions | Long Time and Instantaneous Trip |
| Mpn | CHN230GF |
| Upc | 786689217242 |
