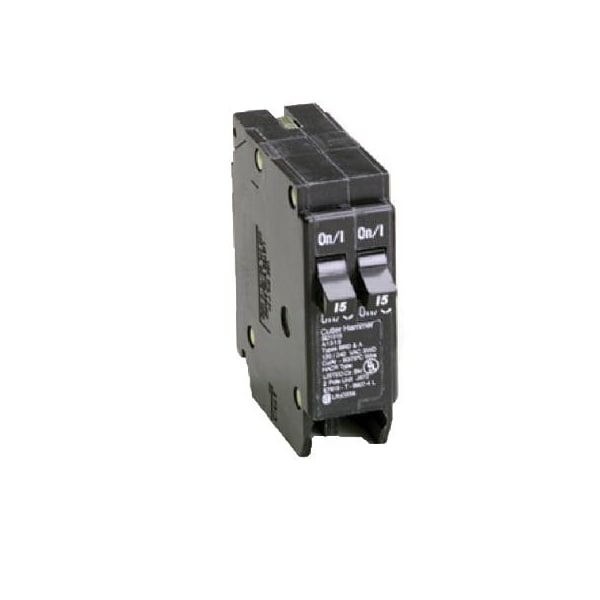

Circuit Breaker, BR Series, 15A, 1 Pole, 120/240V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Series | BR |
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Mounting Style | Plug On |
| Max. AIR Rating | 10kA |
| Trip Type | Thermal Magnetic |
| Width | 2.9 in |
| Depth | 1 in |
| Height | 2-1/2 in |
| DC Voltage Rating | Not Rated |
| Interrupt Rating | 10 kAIC |
| Wire Size | #14-4 AWG Cu/Al |
| Compliances | Federal Specifications Classification W-C375 |
| Used With | Type BR Loadcenters |
| Product Name | Eaton BR thermal magnetic circuit breaker |
| Product Width | 2.9 in |
| Certifications | UL 489 |
| Package Quantity | 1 |
