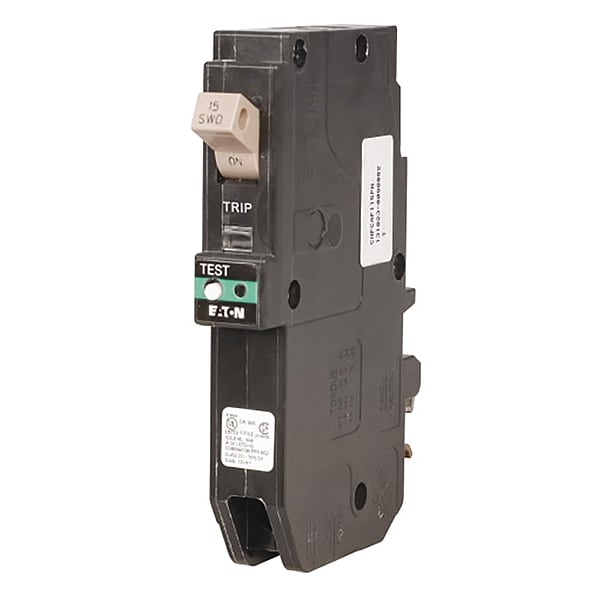

Circuit Breaker, CH Series, 15A, 1 Pole, 120/240V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Series | CH |
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Arc Fault Circuit Interrupter |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug On |
| Max. AIR Rating | 10kA |
| Terminal Connection | Pigtail |
| Width | 6.1 in |
| Depth | 3-1/2 in |
| Height | 1.2 in |
| DC Voltage Rating | Not Rated |
| Standards | UL 489, HACR Rated |
| Max. Wire Size | 6 AWG |
| For Use With | Type CH Loadcenters |
| Application | CH Combo AFCI Breaker, 15A, PON, 10kAIC |
| Min. Wire Size | 14 AWG |
| Interrupt Rating | 10 kA |
| Compatible Panelboard/Load Center Series | CH |
| Length (Straight Wireway) | 3-1/2 in |
| Product Width | 6.1 in |
| Product Name | circuit breaker |
| Special Features | Plug-on neutral |
| Certifications | UL Listed |
| Length | 3-1/2 in |
| Package Quantity | 1 |
