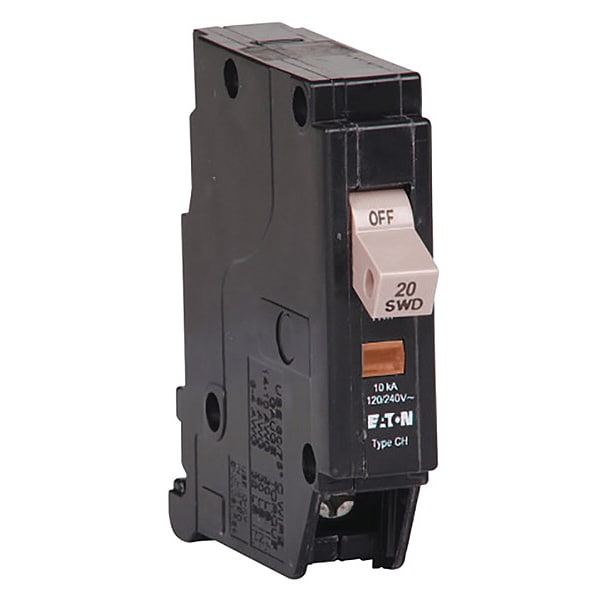

Circuit Breaker, CH Series, 20A, 1 Pole, 120/240V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Series | CH |
| Amps | 20A |
| Number of Poles | 1 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA |
| Trip Type | Trip Flag |
| Width | 3/4 in |
| Depth | 3 in |
| Height | 3 in |
| DC Voltage Rating | Not Rated |
| For Use With | Type CH Loadcenters |
| Interrupt Rating | 10 kA |
| Min. Wire Size | 14 AWG |
| Max. Wire Size | (1) 8 AWG, (2) 10 AWG |
| Standards | UL 489, HACR Rated |
| Compatible Panelboard/Load Center Series | CH |
| Length (Straight Wireway) | 3 in |
| Form Factor | Plug-in |
| Additional Information | Type: CH, Amps:20, Volts AC: 120, 240, Poles:1, Type: Miniature, Switch Duty Rated, Interrupt Rating AC: 10000 |
| Compliances | HACR Rated |
| Product Name | circuit breaker |
| Wire Size | (1) #14-8 AWG;(2) #14-10 AWG Cu/Al |
| Certifications | UL 489 |
| Length | 3 in |
| Package Quantity | 1 |
