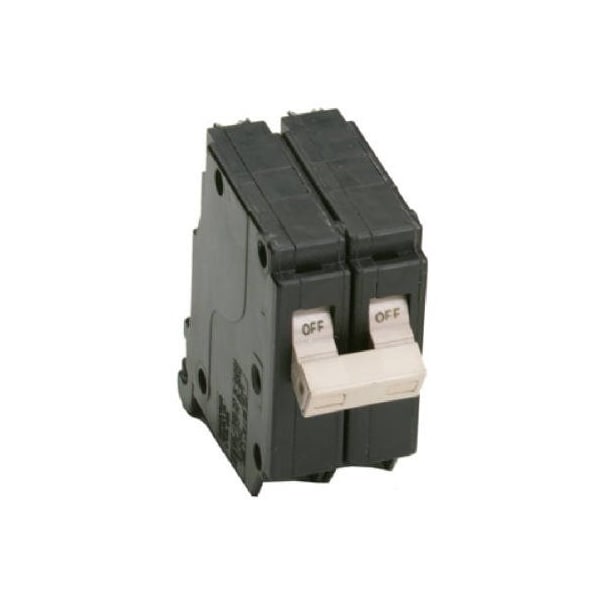

Circuit Breaker, CHF Series, 50A, 2 Pole, 120/240V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Series | CHF |
| Amps | 50A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Actuator | Toggle |
| Max. AIR Rating | 10kA |
| Trip Type | Trip Flag |
| Width | 3/4 in |
| Depth | 1-1/2 in |
| Height | 2.6 in |
| DC Voltage Rating | Not Rated |
| Interrupt Rating | 10 kAIC |
| Product Name | circuit breaker |
| Certifications | UL 489 |
| Product Width | 3/4 in |
| Compliances | HACR Rated |
| Wire Size | #10-1/0 AWG Cu/Al |
| Used With | Type CH Loadcenters |
| Package Quantity | 1 |
