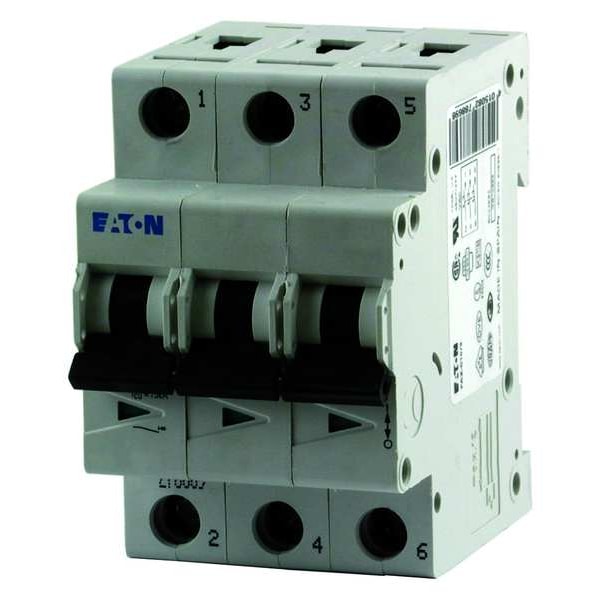

Circuit Breaker, FAZ Series, 10A, 3 Pole, 277/480V AC, 15kA at 277/480V AC, C Curve
| Item | Circuit Breaker |
|---|---|
| Series | FAZ |
| Amps | 10A |
| Number of Poles | 3 |
| AC Voltage Rating | 277/480V AC |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 15kA at 277/480V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Lug |
| Width | 2.13 in |
| Depth | 2.78 in |
| Height | 2.07 in |
| DC Voltage Rating | 96V DC |
| Curve Type | C |
| Max. Wire Size | 4 AWG |
| Min. Wire Size | 18 AWG |
| Standards | CSA C22.2 No. 235, IEC 60947-2, UL 1077 |
| Application | Appliances and Some Motors; Motors, Business Equipment, Control Circuits and Coils; PLC Wiring, Industrial, Lighting, Pilot Devices, Small Transformers, Transformers and Power Supplies |
| Meets UL Type | UL 1077 |
| Length (Straight Wireway) | 2.07 in |
| Mounting | Din Rail |
| Length | 2.07 in |
| Package Quantity | 1 |
