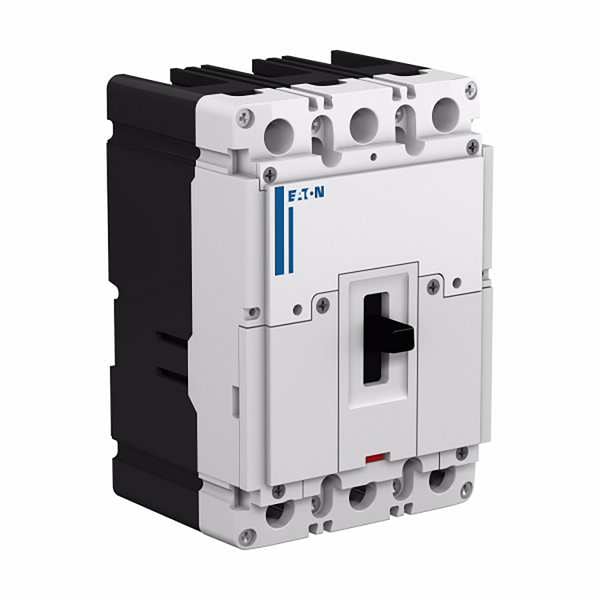

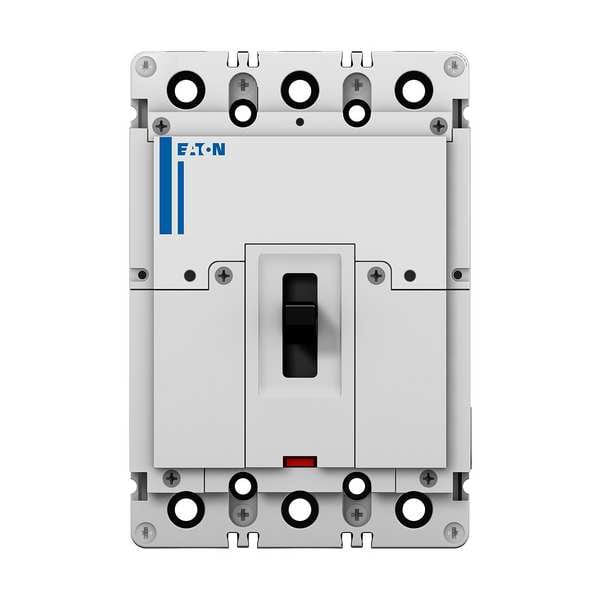

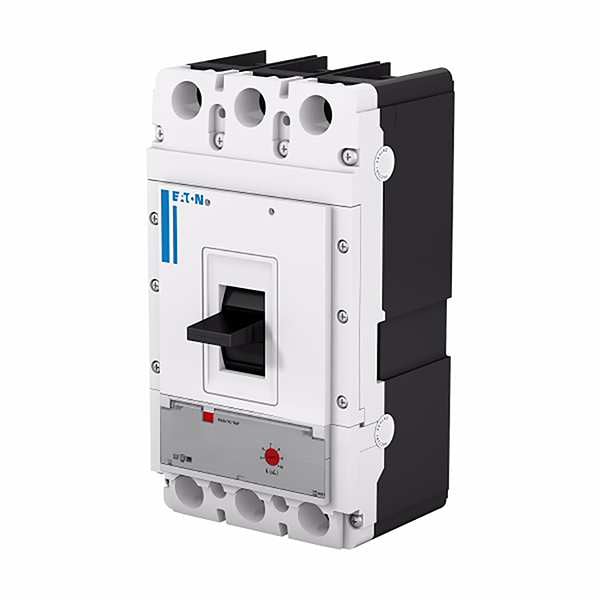

Circuit Breaker, PDD Series, 150A, 3 Pole, 240V AC, 65kA at 240V AC, A Curve
| Item | Circuit Breaker |
|---|---|
| Series | PDD |
| Amps | 150A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Standard Terminals Load Only |
| Phase Connection | ABC |
| Frame Size | 225A/Frame 2 |
| Width | 4.11 in |
| Depth | 3-1/2 in |
| Height | 6 in |
| DC Voltage Rating | Not Rated |
| Curve Type | A |
| Frame Type | Complete Breaker |
| Standards | CSA, RoHS, UL 489 |
| Interrupt Rating | 65 kA at 240V AC, 10 kA Icu at 125V DC |
| Max. Wire Size | 4/0 AWG |
| For Use With | Power Defense |
| Min. Wire Size | 4 AWG |
| Max. Operating Temp. | 158 deg F |
| Min. Operating Temp. | -4 deg F |
| Product Width | 104.6 mm |
| Class | Class A |
| Product Name | Eaton Power Defense molded case circuit breaker |
| Frame | 2 |
| Certifications | UL 489;CSA |
| Interrupt Rating Range | 10 kAIC Icu @125 Vdc;10 kAIC Icu @250 Vdc;65 kAIC @240V (UL) |
| Package Quantity | 1 |
