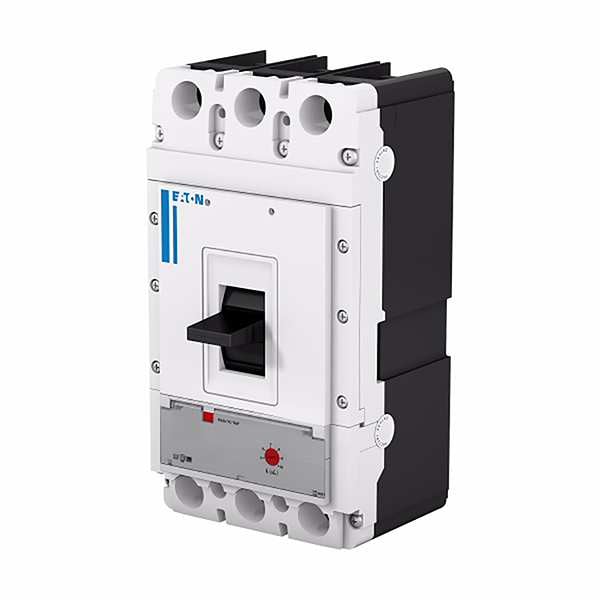

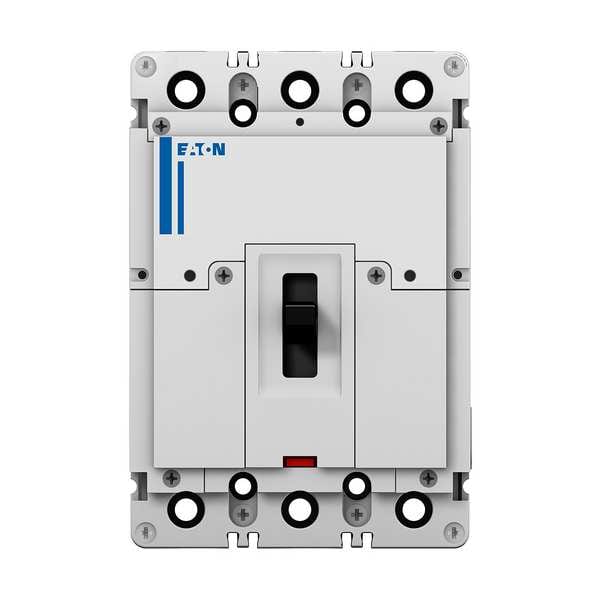

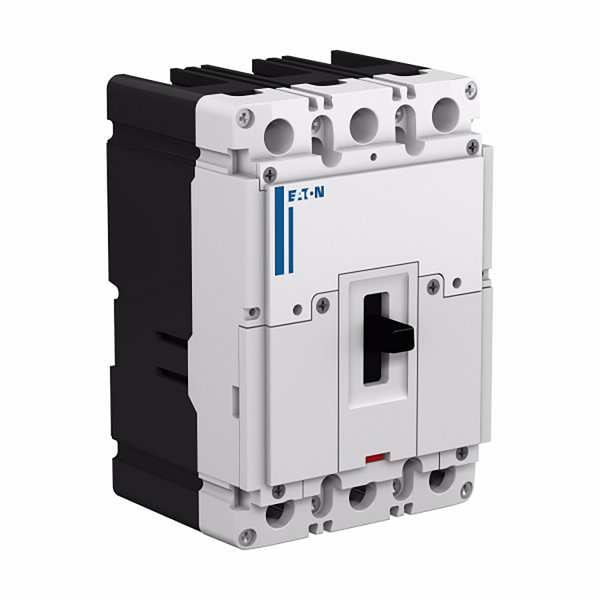

Circuit Breaker, PDD Series, 300A, 3 Pole, 240V AC, 65kA at 240V AC, A Curve
| Item | Circuit Breaker |
|---|---|
| Series | PDD |
| Amps | 300A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed, Adjustable |
| Terminal Connection | Standard Line And Load Lugs |
| Phase Connection | ABC |
| Frame Size | 3, 600A |
| Width | 5.46 in |
| Depth | 4.29 in |
| Height | 10.12 in |
| DC Voltage Rating | Not Rated |
| Curve Type | A |
| Standards | CSA, RoHS, UL 489 |
| Interrupt Rating | 65 kA at 240V AC, 10 kA Icu at 250V DC |
| Frame Type | Complete Breaker |
| Max. Wire Size | 3 AWG |
| Min. Wire Size | 350 AWG |
| Min. Operating Temp. | -4 deg F |
| Max. Operating Temp. | 158 deg F |
| Certifications | CSA;UL 489 |
| Class | Class A |
| Interrupt Rating Range | 10 kAIC Icu @250 Vdc;65 kAIC @240V (UL) |
| Product Width | 138.9 mm |
| Product Name | Eaton Power Defense molded case circuit breaker |
| Package Quantity | 1 |
