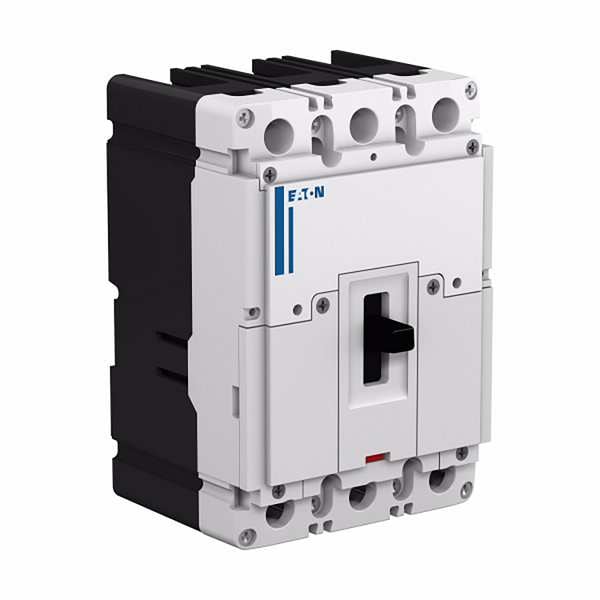

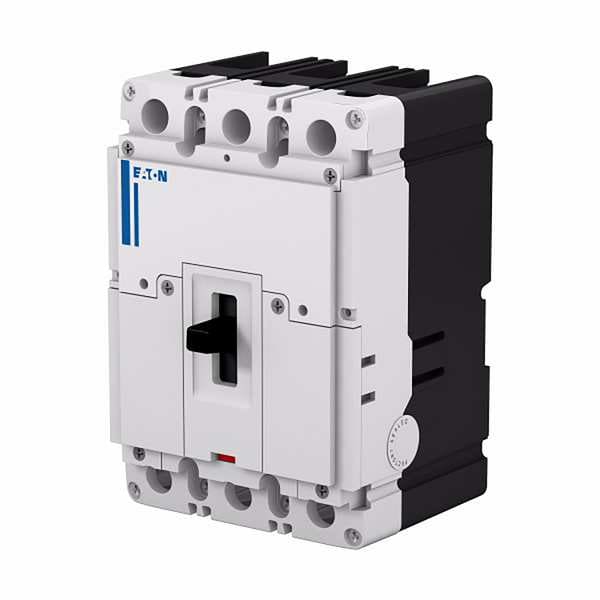

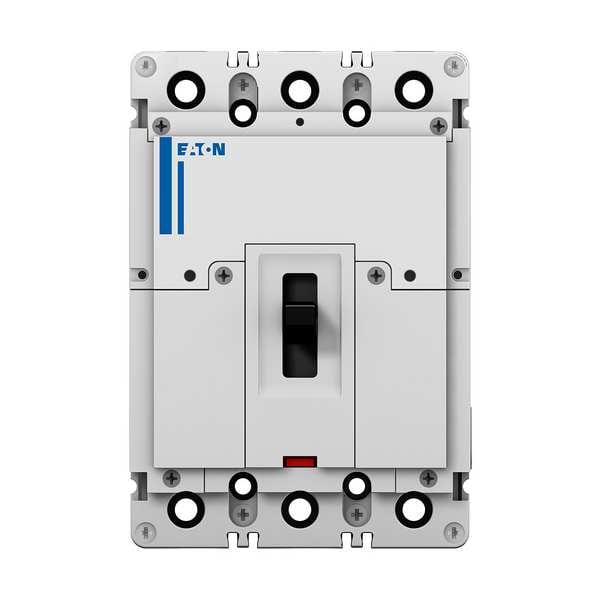

Circuit Breaker, PDG Series, 150A, 3 Pole, 600V AC, 50kA at 480V AC, A Curve
| Item | Circuit Breaker |
|---|---|
| Series | PDG |
| Amps | 150A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Max. AIR Rating | 50kA at 480V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Line |
| Phase Connection | ABC |
| Frame Size | 225A/Frame 2 |
| Width | 4.12 in |
| Depth | 3.96 in |
| Height | 6 in |
| DC Voltage Rating | Not Rated |
| Curve Type | A |
| Interrupt Rating | 50 kA at 480V AC, 10 kA at 250V DC |
| Max. Wire Size | 1/0 AWG |
| Min. Wire Size | 14 AWG |
| Standards | UL Listed |
| Frame Type | Complete Breaker |
| Max. Operating Temp. | 158 deg F |
| Min. Operating Temp. | -4 deg F |
| Rated Operation Voltage (UE) at AC - Max | 600 |
| Interrupt Rating Range | 10 kAIC Icu @250 Vdc;30/25 kAIC Icu/ 15/13 kAIC Ics @525V South Africa (IEC);50 kAIC Icu/ 50 kAIC Ics/ 105 kAIC Icm @380-415V (IEC);35 kAIC Icu/ 22.5 kAIC Ics/ 73.5 kAIC Icm @480V Brazil (IEC);50 kAIC @480V (UL);85 kAIC Icu/ 85 kAIC Ics/ 187 kAIC Icm @240V (IEC);10 kAIC Icu @125 Vdc;10 kAIC Icu/ 5 kAIC Ics/ 21 kAIC Icm @690V (IEC);35 kAIC Icu/ 35 kAIC Ics/ 73.5 kAIC Icm @440V (IEC);85 kAIC @240V (UL);25 kAIC @600V (UL/CSA) |
| Certifications | CSA;UL 489;CCC Marked;IEC 60947-2 |
| Product Width | 104.6 mm |
| Product Name | Eaton Power Defense molded case circuit breaker |
| Switch Off Technique | Thermomagnetic |
| Class | Class A |
| Frame | 2 |
| Package Quantity | 1 |
