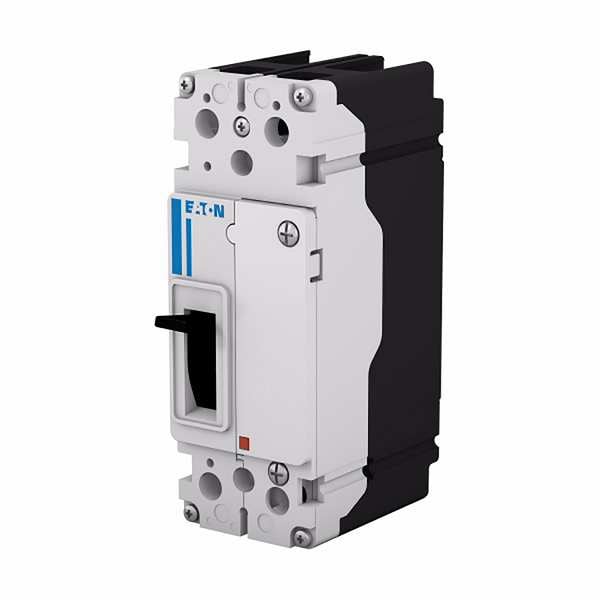

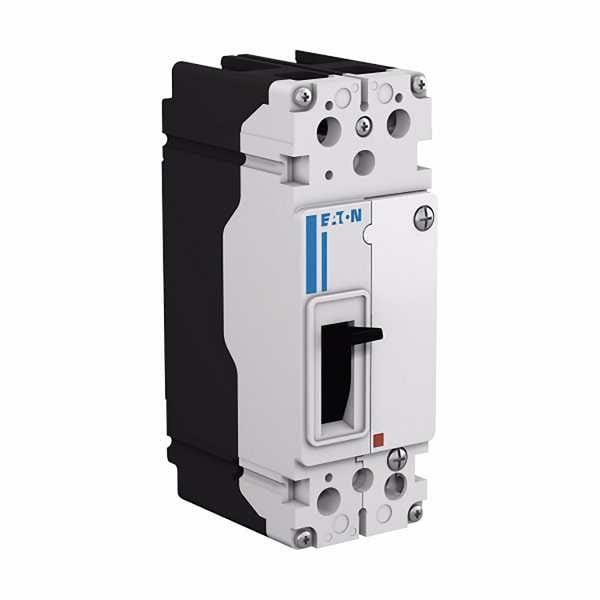

Circuit Breaker, PDG Series, 15A, 2 Pole, 600V AC, 65kA at 480V AC, A Curve
| Item | Circuit Breaker |
|---|---|
| Series | PDG |
| Amps | 15A |
| Number of Poles | 2 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Max. AIR Rating | 65kA at 480V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Line |
| Phase Connection | AB |
| Frame Size | 125A/Frame 1 |
| Width | 2 in |
| Depth | 6.1 in |
| Height | 5-1/2 in |
| DC Voltage Rating | Not Rated |
| Curve Type | A |
| Min. Wire Size | 14 AWG |
| Interrupt Rating | 65 kA at 480V AC, 100 kA at 240V |
| Frame Type | Complete Breaker |
| Standards | CCC, CSA, IEC 60947-2, RoHS, UL 489 |
| Max. Wire Size | 3/0 AWG |
| Max. Operating Temp. | 158 deg F |
| Min. Operating Temp. | -4 deg F |
| Product Name | Eaton Power Defense molded case circuit breaker |
| Class | Class A |
| Interrupt Rating Range | 100 kAIC @240V (UL);100 kAIC Icu/ 100 kAIC Ics/ 220 kAIC Icm @240V (IEC);70 kAIC Icu/ 50 kAIC Ics/ 154 kAIC Icm @380-415V (IEC);35 kAIC Icu @250 Vdc;65 kAIC @480V (UL);35 kAIC Icu @125 Vdc;25 kAIC @600V (UL/CSA) |
| Product Width | 4 in |
| Certifications | IEC 60947-2;UL 489;CCC Marked;CSA |
| Frame | 1 |
| Package Quantity | 1 |
