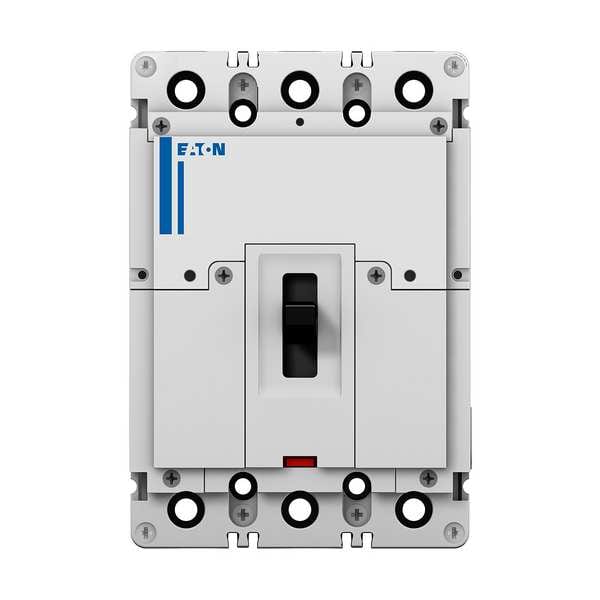

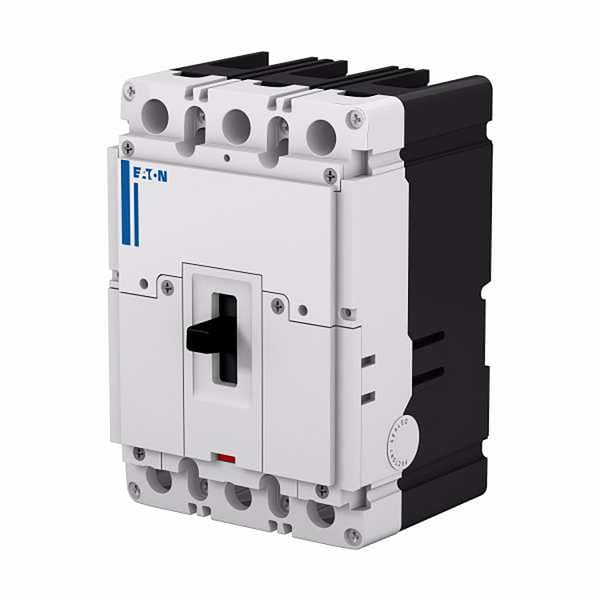

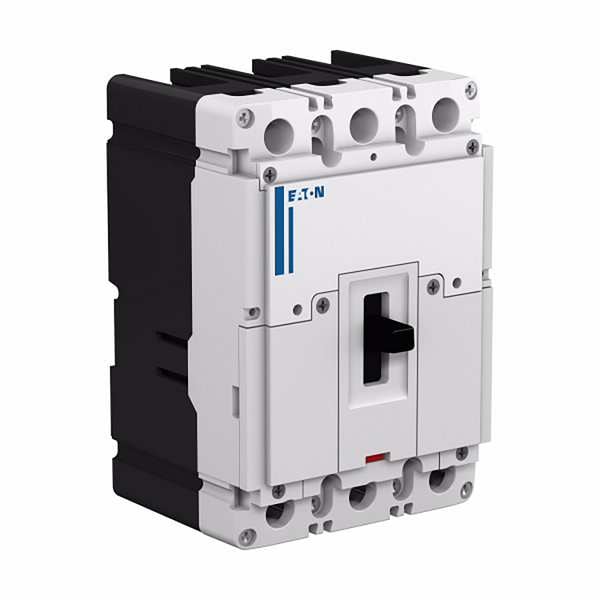

Circuit Breaker, PDG Series, 20A, 3 Pole, 600V AC, 25kA at 480V AC, A Curve
| Item | Circuit Breaker |
|---|---|
| Series | PDG |
| Amps | 20A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Max. AIR Rating | 25kA at 480V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Standard Terminals Load Only |
| Phase Connection | AB |
| Frame Size | 225A/Frame 2 |
| Width | 4.11 in |
| Depth | 3-1/2 in |
| Height | 6 in |
| DC Voltage Rating | Not Rated |
| Curve Type | A |
| Min. Wire Size | 14 AWG |
| Standards | CCC, CSA, IEC 60947-2, RoHS, UL 489 |
| Frame Type | Complete Breaker |
| Max. Wire Size | 1/0 AWG |
| Interrupt Rating | 25 kA at 480V AC, 35 kA lcu/lcs/73.5 kA Icm at 240V |
| Min. Operating Temp. | -4 deg F |
| Max. Operating Temp. | 158 deg F |
| Product Width | 4.1 in |
| Product Name | Eaton Power Defense molded case circuit breaker |
| Class | Class A |
| Frame | 2 |
| Certifications | UL 489;IEC 60947-2;CCC Marked;CSA |
| Interrupt Rating Range | 35 kAIC Icu/ 35 kAIC Ics/ 73.5 kAIC Icm @240V (IEC);18 kAIC Icu/ 15/13 kAIC Ics/ 37.8 kAIC Icm @525V South Africa (IEC);10 kAIC Icu @125 Vdc;20 kAIC Icu/ 20 kAIC Ics/ 42 kAIC Icm @480V Brazil (IEC);25 kAIC Icu/ 25 kAIC Ics/ 52.5 kAIC Icm @380-415V (IEC);14 kAIC @600V (UL/CSA);35 kAIC @240V (UL);25 kAIC @480V (UL);10 kAIC Icu @250 Vdc;25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @440V (IEC) |
| Package Quantity | 1 |
