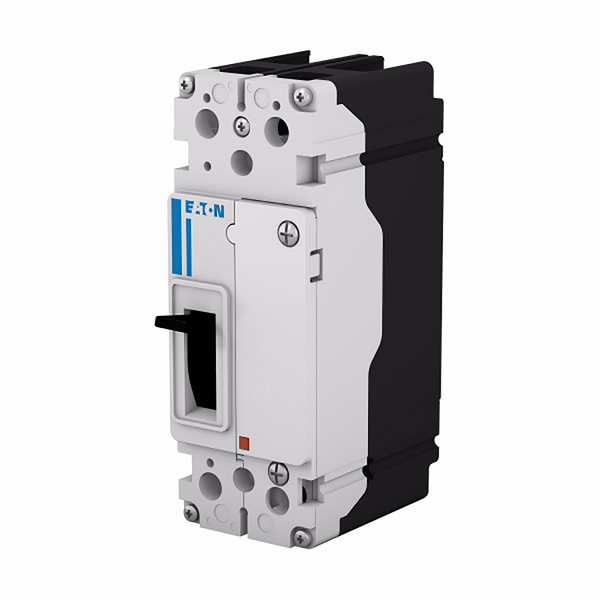

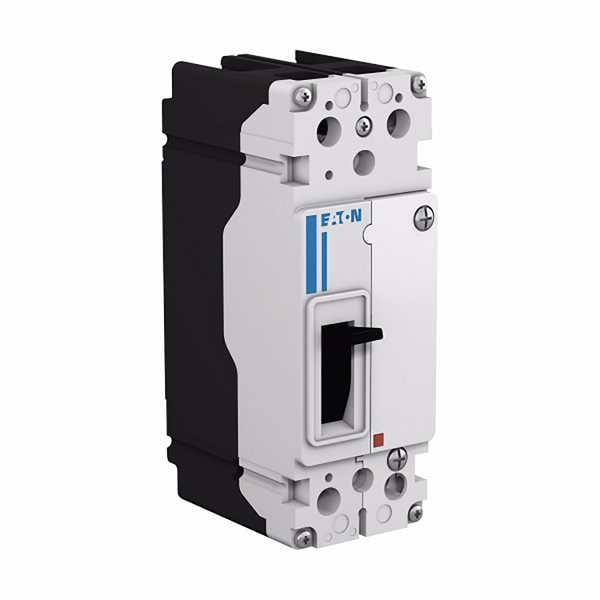

Circuit Breaker, PDG Series, 25A, 2 Pole, 600V AC, 65kA at 480V AC, A Curve
| Item | Circuit Breaker |
|---|---|
| Series | PDG |
| Amps | 25A |
| Number of Poles | 2 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Max. AIR Rating | 65kA at 480V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Standard Line And Load Lugs |
| Phase Connection | AB |
| Frame Size | 125A/Frame 1 |
| Width | 50.8 mm |
| Depth | 76 mm |
| Height | 139.7 mm |
| DC Voltage Rating | Not Rated |
| Curve Type | A |
| Interrupt Rating | 65 kA at 480V AC, 70 kA Icu/50 kA Ics/154 kA Icm at 380-415V |
| Frame Type | Complete Breaker |
| Min. Wire Size | 14 AWG |
| Max. Wire Size | 3/0 AWG |
| Standards | CCC, CSA, IEC, UL |
| Min. Operating Temp. | -4 deg F |
| Max. Operating Temp. | 158 deg F |
| Frame | 1 |
| Certifications | IEC 60947-2;UL 489;CCC Marked;CSA |
| Product Name | Eaton Power Defense molded case circuit breaker |
| Class | Class A |
| Switch Off Technique | Thermomagnetic |
| Rated Operation Voltage (UE) at AC - Max | 600 |
| Interrupt Rating Range | 70 kAIC Icu/ 50 kAIC Ics/ 154 kAIC Icm @380-415V (IEC);25 kAIC @600V (UL/CSA);35 kAIC Icu @125 Vdc;35 kAIC Icu @250 Vdc;100 kAIC Icu/ 100 kAIC Ics/ 220 kAIC Icm @240V (IEC);65 kAIC @480V (UL);100 kAIC @240V (UL) |
| Package Quantity | 1 |
