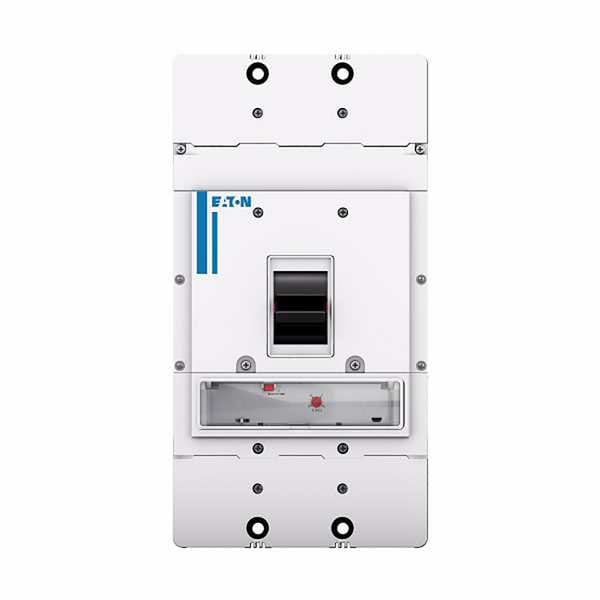

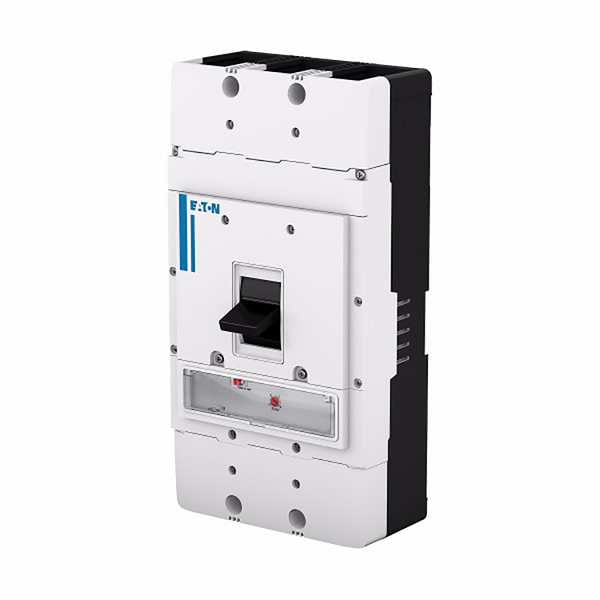

Circuit Breaker, PDG Series, 500A, 3 Pole, 600V AC, 35kA at 480V AC, A Curve
| Item | Circuit Breaker |
|---|---|
| Series | PDG |
| Amps | 500A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Max. AIR Rating | 35kA at 480V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed, Adjustable |
| Terminal Connection | Line |
| Phase Connection | ABC |
| Frame Size | 800A |
| Width | 209.6 mm |
| Depth | 111.2 mm |
| Height | 406.4 mm |
| DC Voltage Rating | Not Rated |
| Curve Type | A |
| Max. Wire Size | 1 AWG |
| Min. Wire Size | 500 AWG |
| Standards | CCC, CSA, IEC, UL |
| Frame Type | Complete Breaker |
| Interrupt Rating | 35 kA at 480V AC, 25 kA Icu/20 kA Ics/52.5 kA Icm at 480V |
| Min. Operating Temp. | -4 deg F |
| Max. Operating Temp. | 158 deg F |
| Certifications | IEC 60947-2;CCC Marked;CSA;UL 489 |
| Frame | 4 |
| Class | Class A |
| Product Name | Eaton Power Defense molded case circuit breaker |
| Interrupt Rating Range | 25 kAIC Icu/ 20 kAIC Ics/ 52.5 kAIC Icm @480V Brazil (IEC);20 kAIC Icu/ 16.5 kAIC Ics/ 42 kAIC Icm @525V South Africa (IEC);8 kAIC Icu/ 4 kAIC Ics/ 16.8 kAIC Icm @690V (IEC);18 kAIC @600V (UL/CSA);55 kAIC Icu/ 55 kAIC Ics/ 121 kAIC Icm @240V (IEC);65 kAIC @240V (UL);22 kAIC Icu @250 Vdc;30 kAIC Icu/ 22.5 kAIC Ics/ 63 kAIC Icm @440V (IEC);36 kAIC Icu/ 36 kAIC Ics/ 75.6 kAIC Icm @380-415V (IEC);35 kAIC @480V (UL) |
| Package Quantity | 1 |
