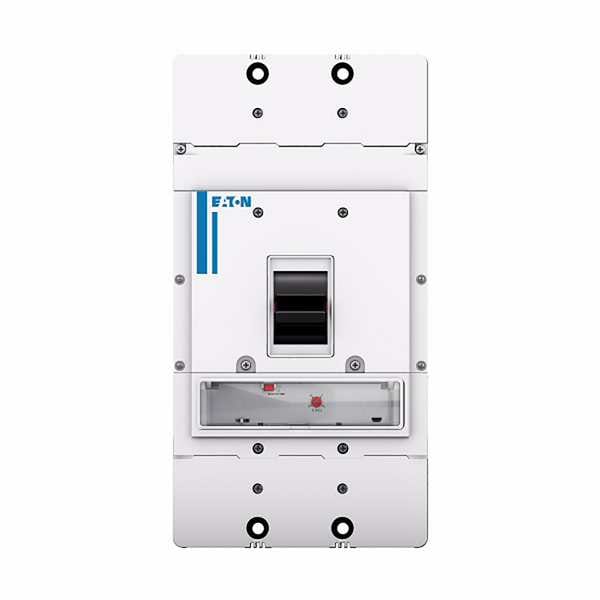

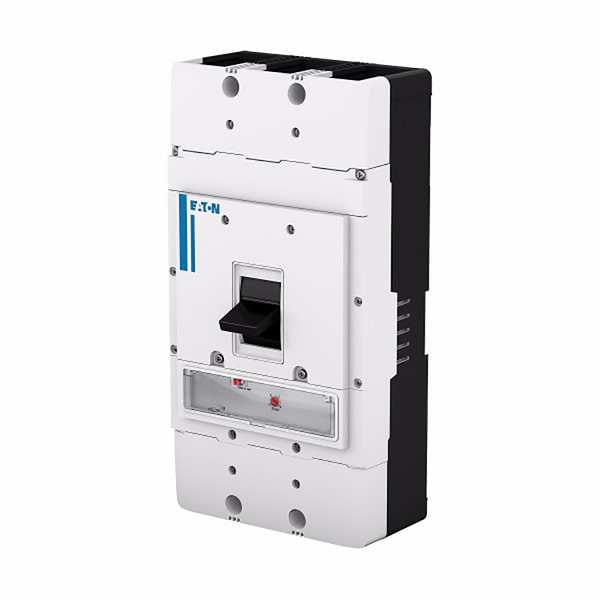

Circuit Breaker, PDG Series, 600A, 3 Pole, 600V AC, 35kA at 480V AC, A Curve
| Item | Circuit Breaker |
|---|---|
| Series | PDG |
| Amps | 600A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Max. AIR Rating | 35kA at 480V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed, Adjustable |
| Terminal Connection | Line |
| Phase Connection | ABC |
| Frame Size | 800A |
| Width | 8-1/4 in |
| Depth | 4.38 in |
| Height | 16 in |
| DC Voltage Rating | Not Rated |
| Curve Type | A |
| Standards | CCC, CSA, IEC 60947-2, RoHS, UL 489 |
| Max. Wire Size | 1 AWG |
| For Use With | Power Defense |
| Min. Wire Size | 500 AWG |
| Frame Type | Complete Breaker |
| Interrupt Rating | 65 kA at 480V AC, 65 kA at 480V |
| Max. Operating Temp. | 158 deg F |
| Min. Operating Temp. | -4 deg F |
| Interrupt Rating Range | 65 kAIC @480V (UL);15 kAIC Icu/ 7.5 kAIC Ics/ 31.5 kAIC Icm @690V (IEC);25 kAIC Icu @250 Vdc;70 kAIC Icu/ 53 kAIC Ics/ 154 kAIC Icm @380-415V (IEC);50 kAIC Icu/ 30 kAIC Ics/ 105 kAIC Icm @480V Brazil (IEC);50 kAIC Icu/ 40 kAIC Ics/ 105 kAIC Icm @440V (IEC);30 kAIC Icu/ 25 kAIC Ics/ 63 kAIC Icm @525V South Africa (IEC);35 kAIC @600V (UL/CSA);100 kAIC Icu/ 100 kAIC Ics/ 220 kAIC Icm @240V (IEC);100 kAIC @240V (UL) |
| Class | Class A |
| Rated Operation Voltage (UE) at AC - Max | 600 |
| Product Name | Eaton Power Defense molded case circuit breaker |
| Switch Off Technique | Thermomagnetic |
| Certifications | CSA;CCC Marked;IEC 60947-2;UL 489 |
| Frame | 4 |
| Product Width | 209.6 mm |
| Package Quantity | 1 |
