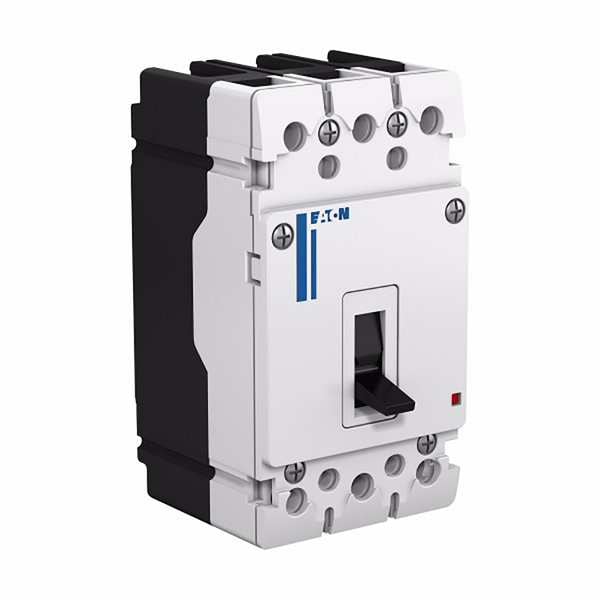

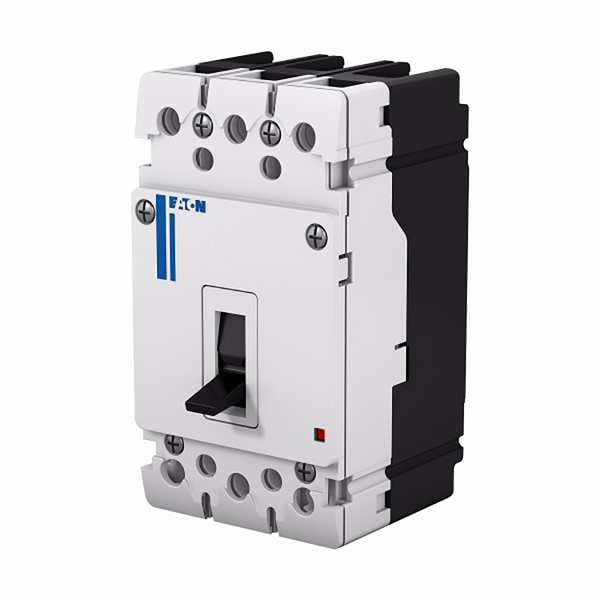

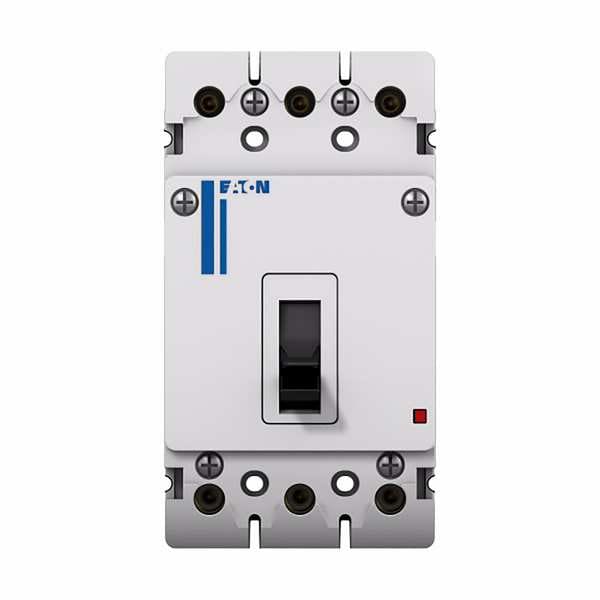

Circuit Breaker, PDG Series, 60A, 3 Pole, 600V AC, 18kA at 480V AC, A Curve
| Item | Circuit Breaker |
|---|---|
| Series | PDG |
| Amps | 60A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Max. AIR Rating | 18kA at 480V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Line |
| Phase Connection | ABC |
| Frame Size | 125A/Frame 1 |
| Width | 76.2 mm |
| Depth | 76 mm |
| Height | 139.7 mm |
| DC Voltage Rating | Not Rated |
| Curve Type | A |
| Standards | CCC, CSA, IEC, UL |
| Min. Wire Size | 14 AWG |
| Max. Wire Size | 3/0 AWG |
| Interrupt Rating | 18 kA at 480V AC, 10 kA at 125V DC |
| Frame Type | Complete Breaker |
| Min. Operating Temp. | -4 deg F |
| Max. Operating Temp. | 158 deg F |
| Interrupt Rating Range | 10 kAIC Icu @125 Vdc;10 kAIC Icu @250 Vdc;25 kAIC @240V (UL);18 kAIC @480V (UL);25 kAIC Icu/ 25 kAIC Ics/ 52.5 kAIC Icm @240V (IEC);10 kAIC @600V (UL/CSA);20 kAIC Icu/ 20 kAIC Ics/ 42 kAIC Icm @380-415V (IEC) |
| Frame | 1 |
| Product Name | Eaton Power Defense molded case circuit breaker |
| Class | Class A |
| Certifications | CSA;IEC 60947-2;UL 489;CCC Marked |
| Package Quantity | 1 |
