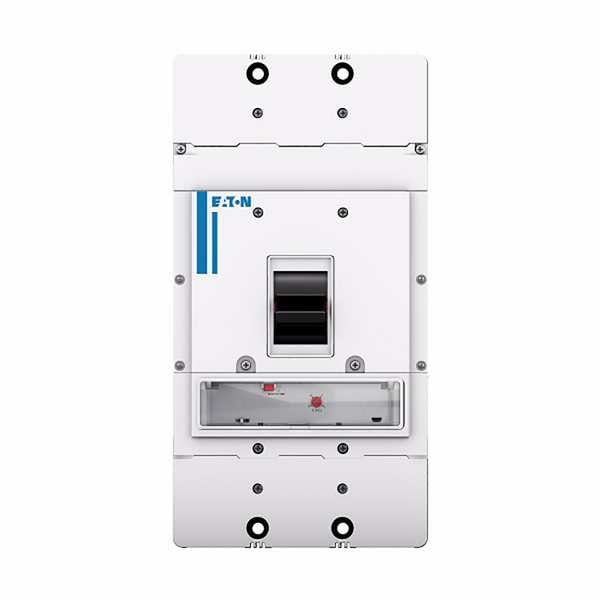

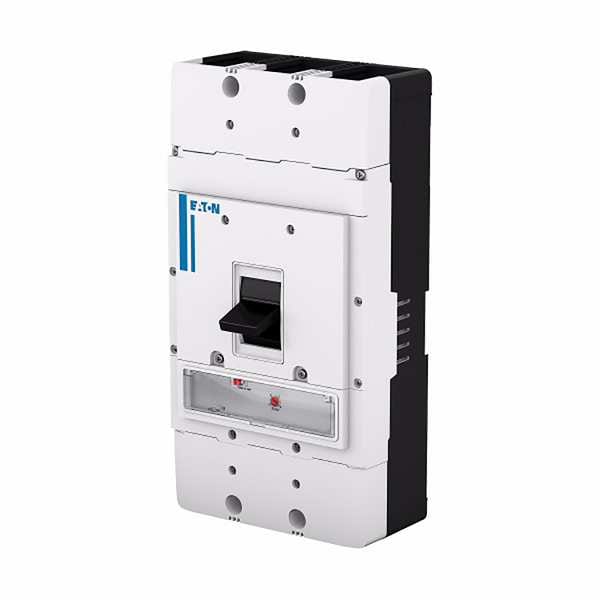

Circuit Breaker, PDG Series, 800A, 3 Pole, 600V AC, 65kA at 480V AC, A Curve
| Item | Circuit Breaker |
|---|---|
| Series | PDG |
| Amps | 800A |
| Number of Poles | 3 |
| AC Voltage Rating | 600V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Max. AIR Rating | 65kA at 480V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed, Adjustable |
| Terminal Connection | Line |
| Phase Connection | ABC |
| Frame Size | 800A |
| Width | 1 in |
| Depth | 3.58 in |
| Height | 5-1/2 in |
| DC Voltage Rating | Not Rated |
| Curve Type | A |
| For Use With | Power Defense |
| Max. Wire Size | 3/0 AWG |
| Standards | CCC, CSA, IEC, UL |
| Frame Type | Complete Breaker |
| Min. Wire Size | 400 AWG |
| Interrupt Rating | 65 kA at 480V AC, 100 kA Icu/100 kA Ics/220 kA Icm at 240V |
| Min. Operating Temp. | -4 deg F |
| Max. Operating Temp. | 158 deg F |
| Certifications | CSA;UL 489;CCC Marked;IEC 60947-2 |
| Class | Class A |
| Interrupt Rating Range | 100 kAIC Icu/ 100 kAIC Ics/ 220 kAIC Icm @240V (IEC);50 kAIC Icu/ 30 kAIC Ics/ 105 kAIC Icm @480V Brazil (IEC);15 kAIC Icu/ 7.5 kAIC Ics/ 31.5 kAIC Icm @690V (IEC);30 kAIC Icu/ 25 kAIC Ics/ 63 kAIC Icm @525V South Africa (IEC);35 kAIC @600V (UL/CSA);70 kAIC Icu/ 53 kAIC Ics/ 154 kAIC Icm @380-415V (IEC);65 kAIC @480V (UL);25 kAIC Icu @250 Vdc;100 kAIC @240V (UL);50 kAIC Icu/ 40 kAIC Ics/ 105 kAIC Icm @440V (IEC) |
| Product Name | Eaton Power Defense molded case circuit breaker |
| Frame | 4 |
| Product Width | 209.6 mm |
| Package Quantity | 1 |
