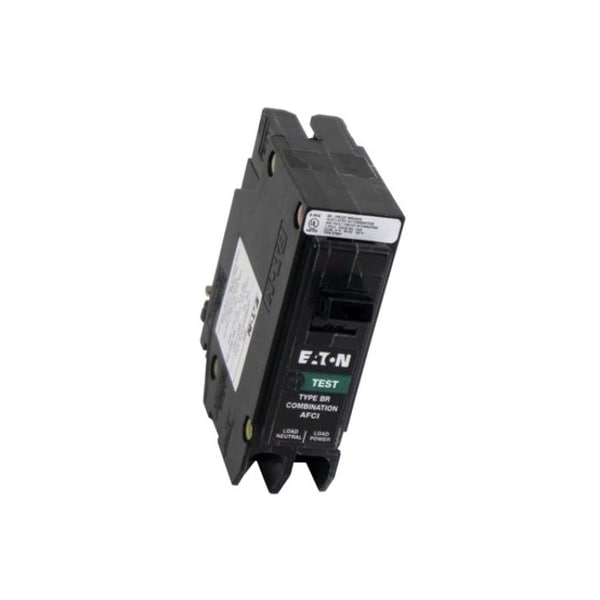

Combination Circuit Breaker, BR Series, 15A, 1 Pole, 120V AC, 10kA
| Item | Combination Circuit Breaker |
|---|---|
| Series | BR |
| Amps | 15A |
| Number of Poles | 1 |
| AC Voltage Rating | 120V AC |
| Circuit Breaker Type | Combination Arc Fault Circuit Interrupter |
| Circuit Breaker Mounting Style | Plug On |
| Max. AIR Rating | 10kA |
| Terminal Connection | Plug On |
| Width | 1 in |
| Depth | 2.56 in |
| Height | 1.1 in |
| DC Voltage Rating | Not Rated |
| Interrupt Rating | 10 kAIC |
| Certifications | UL Listed |
| Neutral | Plug-on neutral |
| Product Width | 1 in |
| Special Features | UL only |
| Wire Size | #14-8 AWG Cu/Al |
| Used With | Type BR Loadcenters |
| Product Name | circuit breaker |
| Package Quantity | 1 |
