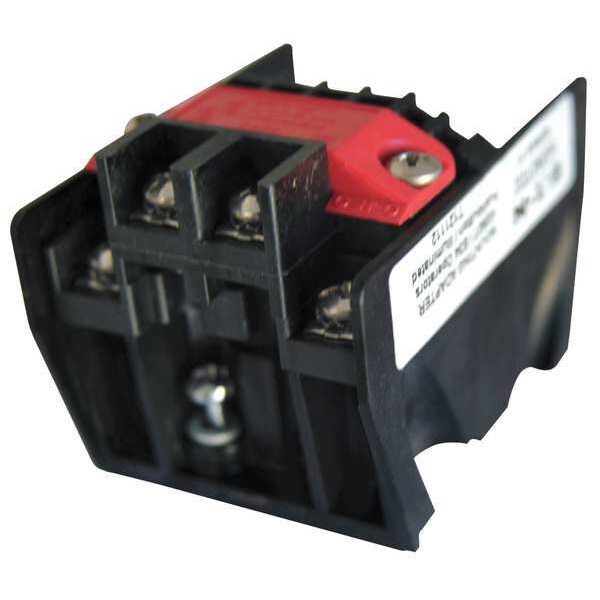

Bloque de contacto, 1 normalmente abierto / 1 normalmente cerrado, 30mm.
| Size | 30 mm |
|---|---|
| Item | Contact Block |
| For Use With | Eaton 10250T and E34 Operators |
| Color | Black |
| Includes | Adapter and Contact Blocks |
| Action | Momentary, Break |
| Application | Operator |
| Contact Form | 1NO/1NC |
| Safety Rating | NEC Class I Division 2, Groups B, C and D |
| Contact Rating | 10A @ 660V AC/DC |
| Standards | cUL, UL Listed |
| NEMA Contact Rating Designation | A600, P600 |
| Type | 30.5 mm, Heavy-Duty |
| Product Length/Depth | 2-3/4 in |
| Series | 10250T |
| Certifications | UL Listed |
| Product Height | 1-3/4 in |
| Product Width | 1-3/4 in |
| Used with | Class 1, division 2 |
| Product Name | Eaton 10250T pushbutton mounting adapter |
| Manufacturer Warranty Length | 1 yr |
| Terminal Connection Type | Screw Clamp Terminals |
| Switch Action | Break, Momentary Before Make |
| Compatible Operator | Push Button |
| Includes Mounting Block | Mounting Block Included |
| Compatible with Series | 10250T, E34 |
| AC Contact Rating | 10 A @ 660 V |
| Connection Size | 30 mm |
| DC Contact Rating | 10 A @ 600 V |
| Package Quantity | 1 |
