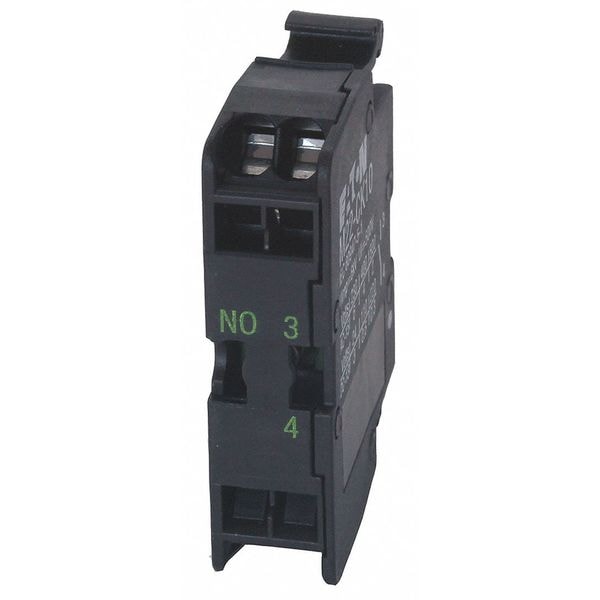

Bloque de Contacto, Jaula, Negro, 22mm, 1NO
| Item | Contact Block |
|---|---|
| Contact Rating | 6 A @ 240 V AC |
| For Use With | Eaton M22 Push Buttons |
| Size | 22 mm |
| Action | Momentary |
| Application | Operator |
| Contact Form | 1NO |
| Color | Black |
| NEMA Contact Rating Designation | A600, Q300 |
| Terminal Connection | Cage |
| Standards | Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register |
| Safety Rating | CE, CSA, IEC 60947, UL, VDE 0660 |
| Certifications | CCC Marked |
| Contact configuration | NO |
| Product Height | 1.54 in |
| Product Width | 1.18 in |
| Product Length/Depth | 1.03 in |
| Environmental rating | IP65 |
| Button color | Black |
| Special features | NC contact blocks are positively driven |
| Actuator | Front, spring-cage |
| Compliances | CE Marked |
| Type | Contact Block |
| Series | M22 |
| Product Name | Eaton M22 pushbutton contact block |
| Compatible with Series | M22, M22M |
| Switch Action | Momentary |
| AC Contact Rating | 6 A @ 240 V |
| Terminal Connection Type | Spring Cage Terminals |
| DC Contact Rating | 6 A @ 240 V |
| Includes Mounting Block | Mounting Block Included |
| Connection Size | 22 mm |
| Manufacturer Warranty Length | 1 yr |
| Compatible Operator | Push Button |
| Package Quantity | 1 |
