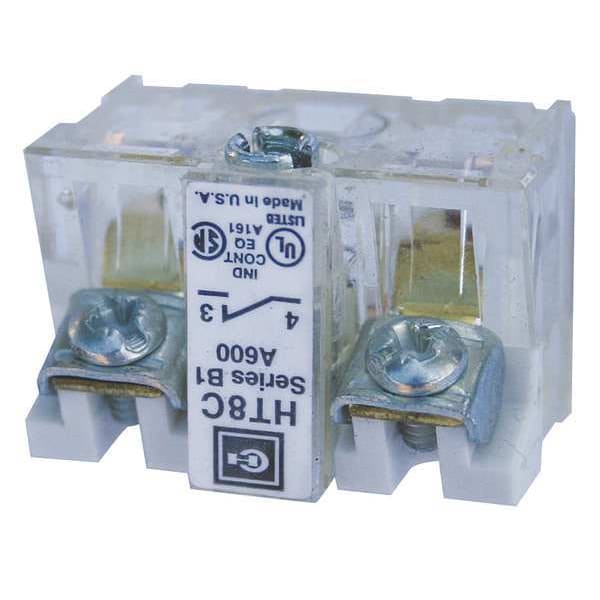

Bloque de contacto, NO activación temprana, 30mm.
| Item | Contact Block |
|---|---|
| Contact Rating | 12 A @ 600 V AC |
| For Use With | Eaton HT800 Push Buttons and Indicating Lights |
| Size | 30 mm |
| Action | Momentary |
| Application | Operator |
| Contact Form | 1NO |
| Color | Clear |
| Standards | CSA, UL Listed |
| Terminal Connection | Screw, Clamp |
| NEMA Contact Rating Designation | A600, P600 |
| Voltage | 600 |
| Certifications | CSA Certified |
| Special features | Contact block |
| Product Height | 2 in |
| Series | HT800 |
| Product Width | 2 in |
| Type | 30.5 mm |
| Contact configuration | NO early make |
| Product Length/Depth | 2 in |
| Product Name | Eaton HT800 pushbutton contact block |
| DC Contact Rating | 10 A @ 600 V |
| Switch Action | Momentary |
| Manufacturer Warranty Length | 1 yr |
| Connection Size | 30 mm |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible Operator | Push Button, Pilot Light |
| Compatible with Series | HT800 |
| Includes Mounting Block | Mounting Block Included |
| AC Contact Rating | 12 A @ 600 V |
| Package Quantity | 1 |
