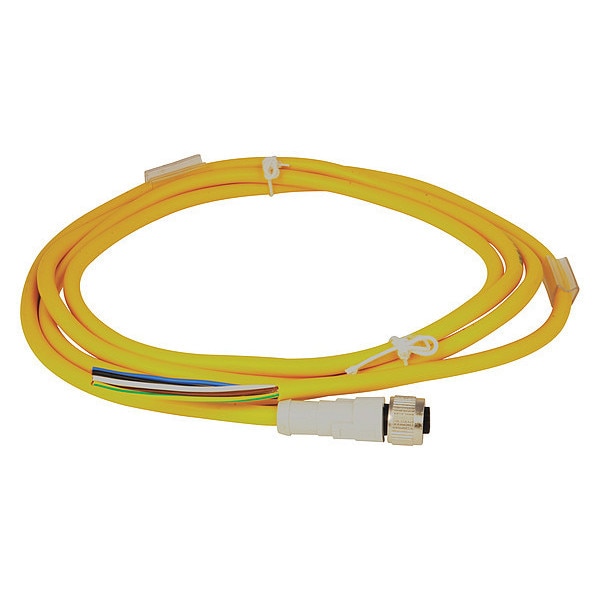

Cable, enchufe, 4 pines, hembra
| Item | Connector Cable |
|---|---|
| Cable Length | 6 ft |
| Number of Pins | 4 |
| Jacket Color | Yellow |
| End 1 Number of Pins | 4 |
| Max. Voltage | 600VAC/VDC |
| End 1 Thread | 1"-16 |
| Wire Size | 22 AWG |
| End 2 Thread | Not Applicable |
| End 1 Connection Type | 1 in |
| End 2 Connection Type | Bare Wire |
| NEMA Rating | 6P |
| End 2 Gender and Plug End | Bare Wire |
| Temp. Range | -13 to 176 deg F |
| For Use With | Micro-Style, 4 Pin, 6 ft. AC Photo Cable, PVC Jacket |
| IP Rating | IP67 |
| Features | Heavy Duty Design Ensures Long Life with Your Eaton Sensor |
| End 1 Keyway | Single |
| Max. Amps | 4 |
| End 1 Gender and Plug End | Female Straight |
| Number of Conductors | 4 |
| Standards | CSA, cUL, UL |
| Jacket Material | PVC |
| Color | Red/Black, Red/White, Red, Green |
| End 1 Number of Keyways | 1 |
| Cordset Type | Single-Ended |
| Maximum Operating Temperature | 221 deg F |
| Number of Wires | 4 |
| Cable Jacket Color | Yellow |
| End 1 Mounting Orientation | Straight |
| Minimum Operating Temperature | -4 deg F |
| End 1 Gender | Female |
| Cable Jacket Material | PVC |
| Type | Accessory |
| End 2 Gender | Not Applicable |
| Product Height | 0.58 in |
| Cable Type | Polyvinyl Chloride |
| Cord length | 79.2 ft |
| Environmental rating | IP67 |
| Certifications | UL Listed |
| Product Length/Depth | 78.72 in |
| Product Name | Eaton Global Plus connector cable |
| Input voltage | 320 V |
| Product Width | 0.58 in |
| Power consumption | AC |
| Series | Global Plus |
| Switch type | Sensor connectivity |
| Connection | Micro-style straight female |
| Operating temperature | -13° to 176°F (-25° to 80°C) |
| Package Quantity | 1 |
