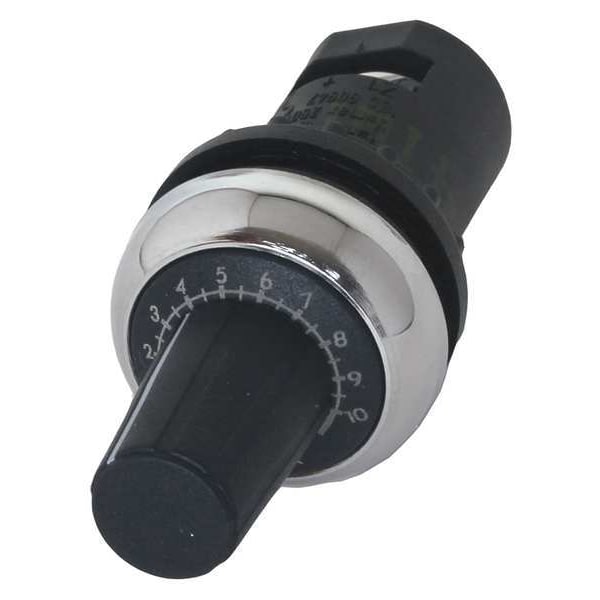

Potenciómetro resistente a la corrosión, 2W, 4mA.
| Item | Potentiometer |
|---|---|
| Watts | 2 |
| Ohms | 100,000 |
| Max. Voltage | 240 V AC |
| Max. Amps | 0.008 |
| NEMA Rating | 13, 4X |
| Dial Plate Graduations | 0 to 100% |
| Size | 22 mm |
| Type | Potentiometer |
| Actuator | Oversized knob |
| Environmental rating | IP20 |
| Compliances | Bureau Veritas |
| Certifications | CCC Marked |
| Product Height | 1.15 in |
| Bezel | Silver |
| Product Width | 1.17 in |
| Series | M22 |
| Color | Black |
| Product Length/Depth | 1.17 in |
| Product Name | Eaton M22 potentiometer |
| Operating Temperature - Maximum | 158 Degrees F |
| Current Rating | 8 mA |
| Resistance Rating | 100,000 ohms |
| Resistance Properties | Corrosion Resistant |
| Manufacturer Warranty Length | 1 yr |
| Panel Cutout Diameter | 22 mm |
| Operating Temperature - Minimum | -13 deg F |
| Includes Dial Plate | Dial Plate Included |
| Voltage Rating - Maximum | 240 V AC |
| Knob Style | Oversized |
| Overall Depth | 2-1/2 in |
| Power Rating | 0.5 W |
| Overall Height | 1-3/4 in |
| NEMA Enclosure Rating | 13, 4X |
| IP Rating | IP20 |
| Overall Width | 2 in |
| Package Quantity | 1 |
