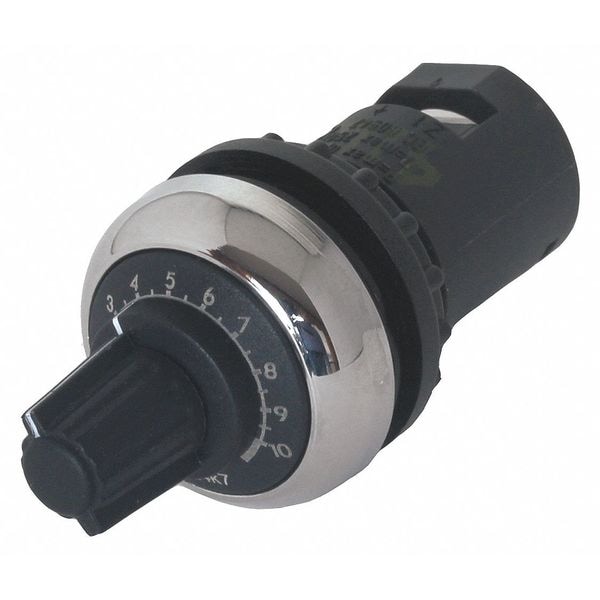

Potenciómetro resistente a la corrosión, 2W, 4mA
| Item | Potentiometer |
|---|---|
| Watts | 2 |
| Ohms | 10,000 |
| Max. Voltage | 240 V AC |
| Max. Amps | 0.008 |
| NEMA Rating | 13, 4X |
| Size | 22 mm |
| Dial Plate Graduations | 0 to 100% |
| Environmental rating | IP67, IP69K (IP66 key-release) |
| Enclosure | NEMA 13 |
| Product Height | 1 in |
| Series | M22 |
| Product Width | 6 in |
| Type | M22 Pushbutton Operator |
| Bezel | Metal |
| Product Length/Depth | 4 in |
| Product Name | Eaton M22 potentiometer |
| IP Rating | IP67, IP69K |
| Knob Style | Standard |
| Voltage Rating - Maximum | 240 V AC |
| Panel Cutout Diameter | 22 mm |
| Overall Width | 6 in |
| Overall Height | 1 in |
| Power Rating | 0.5 W |
| Overall Depth | 4 in |
| Current Rating | 8 mA |
| Resistance Rating | 10,000 ohms |
| Resistance Properties | Corrosion Resistant |
| Operating Temperature - Maximum | 158 Degrees F |
| Operating Temperature - Minimum | -13 deg F |
| Includes Dial Plate | Dial Plate Included |
| NEMA Enclosure Rating | 13, 4X |
| Package Quantity | 1 |
