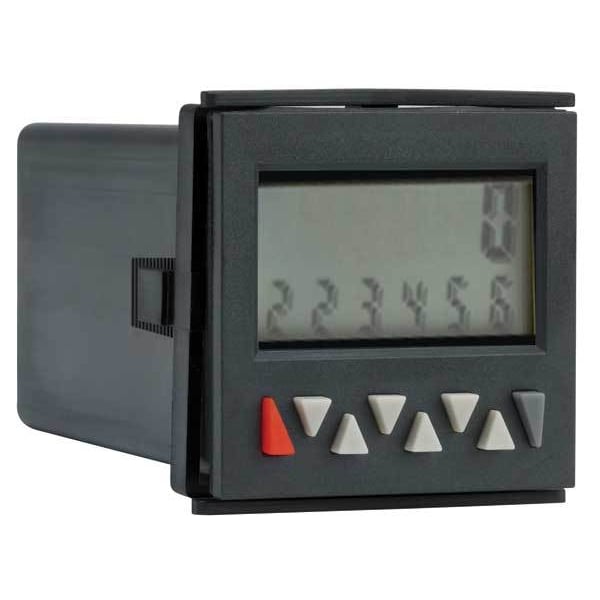

Contador, 2 ajustes predefinidos, 10-30VDC, 55kHz, 6 dígitos.
| Item | Digital Counter/Timer |
|---|---|
| Display | 2-Preset LCD |
| Input Signal | NPN, PNP |
| Number of Digits | 6 |
| Mounting | Panel |
| Output Rating | 3A @ 110V DC, 3A @ 250V AC |
| Max. Counts per Second | 55,000 |
| Length | 1.89 in |
| Depth | 3.58 in |
| Reset Type | Push Button, Remote Signal |
| Width | 1.89 in |
| Input Voltage | 10 to 30V DC |
| Standards | CE, UL |
| Relay | 2 |
| Prescaling Range | 0.0001 to 99.999 |
| Power Rating | 8VA |
| Preset | 2 |
| Min. On/Off Pulse | 10ms |
| Scaler | Yes |
| Fits Panel Cut Out | 48 mm x 48 mm |
| Special Features | Programmable As Preset Counter, Batch Counter Or Totalizer. Preset Counters Function As Timer Or Tachomter/Ratemeter. Direct Input Of Presets Via Front Keys Or Teach-In Inputs. Relay Outputs. |
| Counts | 2 |
| Series | E5 |
| Length (Straight Wireway) | 1.89 in |
| Product Type | Totalizer |
| Voltage rating | 10 to 30 Vdc |
| Product Length/Depth | 3 in |
| Compliances | CE Marked |
| Certifications | UL Recognized |
| Product Width | 3-1/2 in |
| Product Height | 3 in |
| Type | Totalizer |
| Product Name | Eaton count control totalizer |
| Mounting Style | Panel |
| Counter Display Type | LCD |
| Digit Height - Maximum | 0.35 in |
| Cutout Height | 1.8 in |
| Input Voltage - Maximum | 30 V DC |
| Digit Height - Minimum | 0.35 in |
| Input Voltage - Minimum | 10 V DC |
| Display Features | High Contrast |
| Cutout DIN Size | 0.0625 |
| Background Color | Gray |
| Counts per Second - Maximum | 55,000 |
| Cutout Width | 1.8 in |
| Output Type | Relay |
| Features | (2) Preset Count Control |
| Display Span - Maximum | 99,999.9 |
| Digit Color | Black |
| Package Quantity | 1 |
