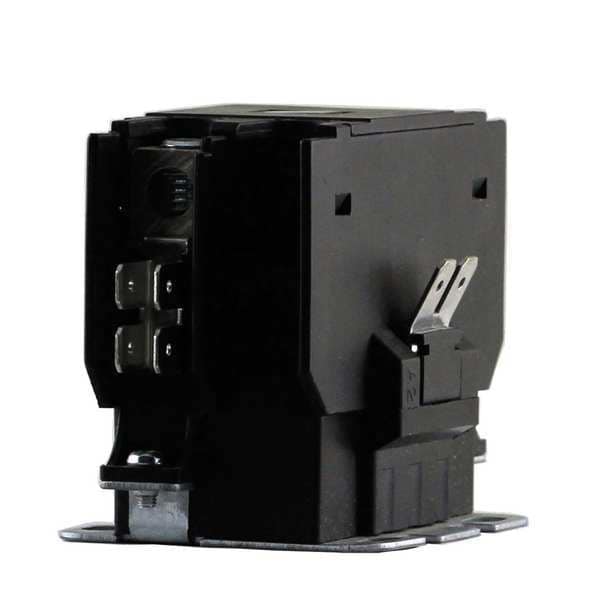

Contactor de Propósito Definido de 120VCA No Reversible Cutler-Hammer de 1 polo y 40 amperios.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 40 A |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 50 A |
| Number of Poles | 1 |
| Coil Volts | 120V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 7.5 |
| HP @ 1 Phase - 120V | 3 hp |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| Height | 3.19 in |
| Width | 1.97 in |
| Depth | 2.32 in |
| Enclosure NEMA Rating | No Enclosure |
| Enclosure Type | Open |
| Includes | Mounting Plate |
| Hz | 50/60 |
| Series | C25 Series |
| Standards | CSA, RoHS, UL Listed |
| Phase | Single |
| Weight | 0.5 lb |
| Mounting Hole Distance - Width | 1.61 in |
| Overall Height | 3.19 in |
| Tungsten Lighting Current Rating | Not Applicable |
| Maximum Voltage Rating | 690 V AC |
| Terminal Connection Type | Terminals |
| Horsepower @ Three Phase - 208V AC | Not Rated |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Input Control Type | 2-Wire |
| Mounting Hole Distance - Height | 1.77 in |
| Mounting Postion | Vertical, Horizontal |
| Overall Depth | 2.32 in |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| LED Lighting Current Rating | 50 A |
| Full Load Current - Resistive | 50 A |
| Fluorescent Lighting Current Rating | Not Applicable |
| Horsepower @ Three Phase - 480V AC | Not Rated |
| NEMA Enclosure Rating | No Enclosure |
| Minimum Operating Temperature | -13 deg F |
| Frame Size | A |
| Maximum Operating Temperature | 158 deg F |
| Contactor Style | HVACR Definite Purpose Contactor |
| Includes Shunt | Single Pole Only |
| Full Load Current - Inductive | 40 A |
| Frequency | 50/60 Hz |
| Reversing Capability | Non-Reversing |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Three Phase - 600V AC | Not Rated |
| Overall Width | 1.97 in |
| Locked Rotor Load | 240 A @ 240-277V |
| Horsepower @ Three Phase - 240V AC | Not Rated |
| Auxiliary Contact Module Capacity | 0 |
| Coil Voltage | 110-120V AC |
| Package Quantity | 1 |
