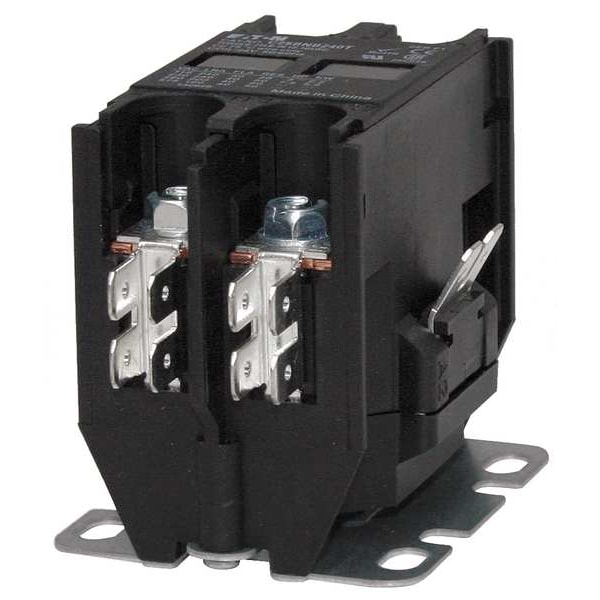

Contactador de propósito definido de 2 polos y 20A a 120VCA sin reversión de Cutler-Hammer.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 20 A |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 30 A |
| Number of Poles | 2 |
| Coil Volts | 120V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 1 1/2 hp |
| HP @ 1 Phase - 230V | 3 |
| HP @ 1 Phase - 240V | 3 hp |
| Height | 3.19 in |
| Width | 1.97 in |
| Depth | 2.32 in |
| Enclosure NEMA Rating | No Enclosure |
| Includes | Mounting Plate |
| Series | C25 Series |
| Enclosure Type | Open |
| Hz | 50/60 |
| Standards | CSA, RoHS, UL Listed |
| Weight | 0.6 lb |
| Phase | Single |
| Full Load Current - Resistive | 30 A |
| Fluorescent Lighting Current Rating | Not Applicable |
| Tungsten Lighting Current Rating | Not Applicable |
| Includes Shunt | Not Applicable |
| Frame Size | B |
| Frequency | 50/60 Hz |
| Mounting Postion | Vertical, Horizontal |
| Horsepower @ Three Phase - 600V AC | Not Rated |
| Overall Height | 3.19 in |
| Input Control Type | 2-Wire |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Horsepower @ Single Phase - 120V AC | 1.5 HP |
| Minimum Operating Temperature | -13 deg F |
| Maximum Operating Temperature | 158 deg F |
| Horsepower @ Three Phase - 480V AC | Not Rated |
| Maximum Voltage Rating | 690 V AC |
| Mounting Hole Distance - Height | 1.77 in |
| Overall Width | 1.97 in |
| Auxiliary Contact Module Capacity | 0 |
| Full Load Current - Inductive | 20 A |
| Mounting Hole Distance - Width | 1.61 in |
| LED Lighting Current Rating | 30 A |
| Reversing Capability | Non-Reversing |
| Locked Rotor Load | 120 A @ 240-277V |
| Contactor Style | HVACR Definite Purpose Contactor |
| Horsepower @ Three Phase - 240V AC | Not Rated |
| NEMA Enclosure Material | Not Applicable |
| Overall Depth | 2.32 in |
| NEMA Enclosure Rating | No Enclosure |
| Coil Voltage | 110-120V AC |
| Terminal Connection Type | Terminals |
| Horsepower @ Three Phase - 208V AC | Not Rated |
| Package Quantity | 1 |
