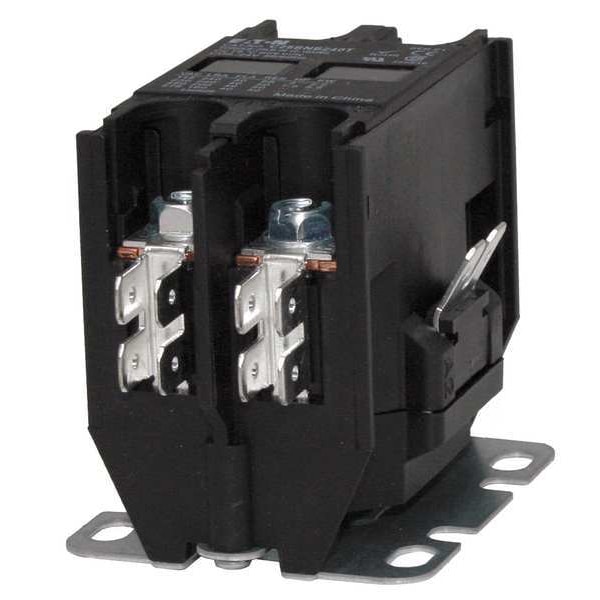

Contactor de propósito definido de 120VCA no reversibles de 2 polos y 25A de Cutler-Hammer.
| Full Load Amps-Inductive | 25 A |
|---|---|
| Item | Definite Purpose Magnetic Contactor |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 30 A |
| Number of Poles | 2 |
| Coil Volts | 120V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 230V | 3 |
| HP @ 1 Phase - 240V | 3 hp |
| Height | 3.19 in |
| Width | 1.97 in |
| Depth | 2.32 in |
| Enclosure NEMA Rating | No Enclosure |
| Enclosure Type | Open |
| Standards | CSA, RoHS, UL Listed |
| Includes | Mounting Plate |
| Hz | 50/60 |
| Series | C25 Series |
| Phase | Single |
| Weight | 0.6 lb |
| Frequency | 50/60 Hz |
| Locked Rotor Load | 150 A @ 240-277V |
| Mounting Hole Distance - Height | 1.77 in |
| Terminal Connection Type | Terminals |
| Includes Shunt | Not Applicable |
| Auxiliary Contact Module Capacity | 0 |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Full Load Current - Resistive | 35 A |
| Overall Height | 3.19 in |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Full Load Current - Inductive | 25 A |
| Mounting Postion | Vertical, Horizontal |
| Overall Depth | 2.32 in |
| NEMA Enclosure Material | Not Applicable |
| Coil Voltage | 110-120V AC |
| LED Lighting Current Rating | 35 A |
| Horsepower @ Three Phase - 240V AC | Not Rated |
| Input Control Type | 2-Wire |
| Overall Width | 1.97 in |
| Maximum Voltage Rating | 690 V AC |
| Horsepower @ Three Phase - 208V AC | Not Rated |
| Horsepower @ Three Phase - 600V AC | Not Rated |
| NEMA Enclosure Rating | No Enclosure |
| Frame Size | B |
| Contactor Style | HVACR Definite Purpose Contactor |
| Mounting Hole Distance - Width | 1.61 in |
| Tungsten Lighting Current Rating | Not Applicable |
| Horsepower @ Three Phase - 480V AC | Not Rated |
| Reversing Capability | Non-Reversing |
| Fluorescent Lighting Current Rating | Not Applicable |
| Maximum Operating Temperature | 158 deg F |
| Minimum Operating Temperature | -13 deg F |
| Package Quantity | 1 |
