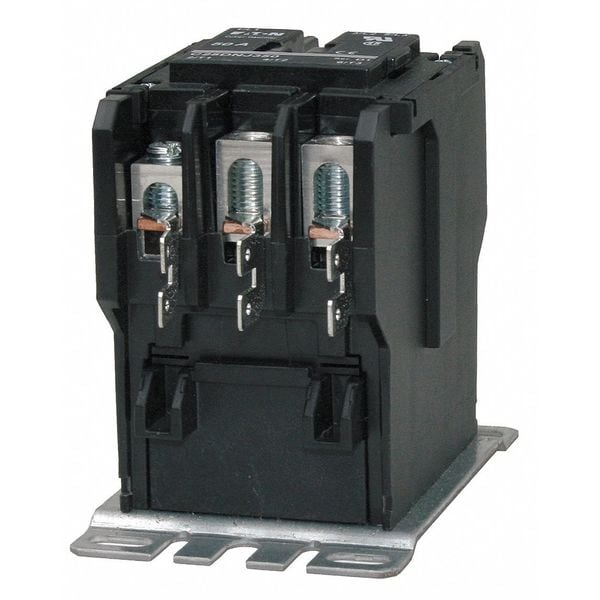

Contactor de propósito específico no inversor de Cutler-Hammer, 120VCA, 3 polos, 60A.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 60 A |
| Full Load Amps-Resistive | 75 A |
| Action | Non-Reversing |
| Number of Poles | 3 |
| Coil Volts | 120V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 10 |
| HP @ 1 Phase - 120V | 5 hp |
| HP @ 1 Phase - 240V | 10 hp |
| HP @ 3 Phase - 230V | 20 |
| Height | 3-3/4 in |
| Width | 2.4 in |
| HP @ 3 Phase - 575V | 40 hp |
| Depth | 3-3/4 in |
| HP @ 3 Phase - 240V | 20 hp |
| HP @ 3 Phase - 480V | 40 hp |
| Enclosure NEMA Rating | No Enclosure |
| Includes | Mounting Plate |
| Series | C25 Series |
| Standards | CSA, RoHS, UL Listed |
| Hz | 50/60 |
| Enclosure Type | Open |
| Phase | Three |
| Weight | 2.8 lb |
| Horsepower @ Three Phase - 600V AC | 40 HP |
| Includes Shunt | Not Applicable |
| Overall Width | 2.63 in |
| Full Load Current - Inductive | 60 A |
| Mounting Hole Distance - Height | 3-1/4 in |
| Horsepower @ Single Phase - 240V AC | 10 HP |
| Horsepower @ Three Phase - 480V AC | 40 HP |
| Auxiliary Contact Module Capacity | 4 |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Hole Distance - Width | 2 in |
| Mounting Postion | Vertical, Horizontal |
| Reversing Capability | Non-Reversing |
| Tungsten Lighting Current Rating | Not Applicable |
| Maximum Operating Temperature | 158 deg F |
| Minimum Operating Temperature | -13 deg F |
| Contactor Style | HVACR Definite Purpose Contactor |
| Frame Size | F |
| Horsepower @ Single Phase - 120V AC | 5 HP |
| Coil Voltage | 110-120V AC |
| NEMA Enclosure Material | Not Applicable |
| Fluorescent Lighting Current Rating | Not Applicable |
| Overall Depth | 3.97 in |
| LED Lighting Current Rating | 75 A |
| Locked Rotor Load | 360 A @ 230V |
| Full Load Current - Resistive | 75 A |
| Horsepower @ Three Phase - 240V AC | 20 HP |
| Terminal Connection Type | Terminals |
| Frequency | 50/60 Hz |
| Overall Height | 3-3/4 in |
| Input Control Type | 2-Wire |
| Maximum Voltage Rating | 690 V AC |
| Horsepower @ Three Phase - 208V AC | 20 HP |
| Package Quantity | 1 |
