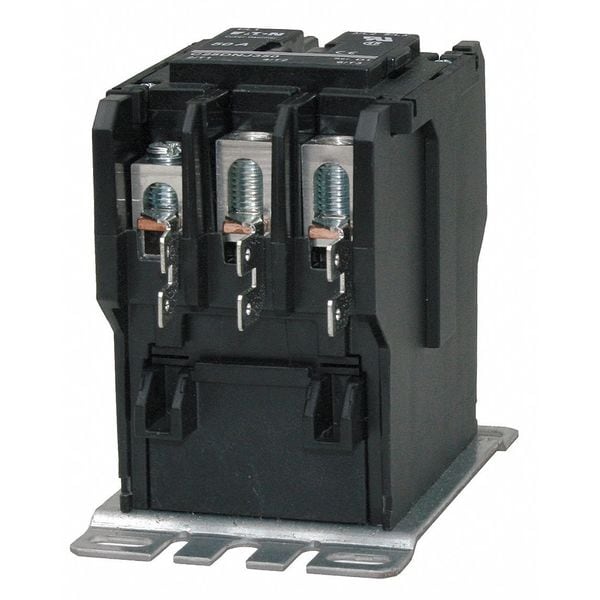

Contactor de propósito definitivo de 120VCA no reversible de 3 polos y 90A de capacidad.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 90 A |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 120 A |
| Number of Poles | 3 |
| Coil Volts | 120V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 15 |
| HP @ 1 Phase - 120V | 7 1/2 hp |
| HP @ 1 Phase - 240V | 15 hp |
| Height | 5 in |
| HP @ 3 Phase - 230V | 30 |
| Width | 3.86 in |
| HP @ 3 Phase - 575V | 50 hp |
| Depth | 4.41 in |
| HP @ 3 Phase - 240V | 30 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 50 hp |
| Hz | 50/60 |
| Series | C25 Series |
| Includes | Mounting Plate |
| Enclosure Type | Open |
| Standards | ARI 780, ARI 790, CE, CSA C22.2 No. 14-05, 238083 Class 3211 84, EN 60947-4-1, IEC 60947-4-1, RoHS, UL E1491 (Guide NLDX2), UL E1491 (Guide NLDX8) |
| Phase | Three |
| Horsepower @ Single Phase - 240V AC | 15 HP |
| Coil Voltage | 110-120V AC |
| Fluorescent Lighting Current Rating | Not Applicable |
| Minimum Operating Temperature | -13 deg F |
| Input Control Type | 2-Wire |
| Horsepower @ Three Phase - 240V AC | 30 HP |
| LED Lighting Current Rating | 120 A |
| Overall Height | 5 in |
| Contactor Style | HVACR Definite Purpose Contactor |
| Full Load Current - Resistive | 120 A |
| Tungsten Lighting Current Rating | Not Applicable |
| Frame Size | G |
| Mounting Hole Distance - Height | 2.87 in |
| Maximum Operating Temperature | 158 deg F |
| Includes Shunt | Not Applicable |
| Horsepower @ Three Phase - 208V AC | 30 HP |
| Terminal Connection Type | Terminals |
| Full Load Current - Inductive | 90 A |
| Reversing Capability | Non-Reversing |
| Horsepower @ Three Phase - 480V AC | 50 HP |
| Mounting Postion | Vertical, Horizontal |
| NEMA Enclosure Material | Not Applicable |
| NEMA Enclosure Rating | No Enclosure |
| Overall Width | 3.86 in |
| Maximum Voltage Rating | 690 V AC |
| Auxiliary Contact Module Capacity | 4 |
| Overall Depth | 4.41 in |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 120V AC | 7.5 HP |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Package Quantity | 1 |
