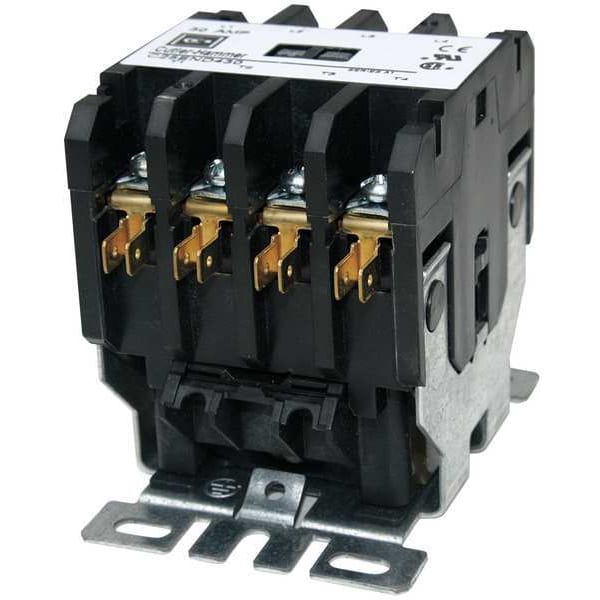

Contactador de propósito definido no inversor de 120VCA Cutler-Hammer de 4 polos y 25A.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 25 A |
| Full Load Amps-Resistive | 30 A |
| Action | Non-Reversing |
| Number of Poles | 4 |
| Coil Volts | 120V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 230V | 3 |
| HP @ 1 Phase - 240V | 3 hp |
| HP @ 3 Phase - 230V | 7.5 |
| Height | 3-3/4 in |
| Width | 2.68 in |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| Depth | 3-3/4 in |
| HP @ 3 Phase - 575V | 15 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 10 hp |
| Includes | Mounting Plate |
| Standards | CSA, RoHS, UL Listed |
| Series | C25 Series |
| Hz | 50/60 |
| Enclosure Type | Open |
| Weight | 2.3 lb |
| Phase | Three |
| Minimum Operating Temperature | -13 deg F |
| Coil Voltage | 110-120V AC |
| Includes Shunt | Not Applicable |
| Locked Rotor Load | 100 A @ 575V, 125 A @ 460V |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Terminal Connection Type | Terminals |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Overall Height | 3-3/4 in |
| Tungsten Lighting Current Rating | Not Applicable |
| NEMA Enclosure Rating | No Enclosure |
| Input Control Type | 2-Wire |
| Reversing Capability | Non-Reversing |
| Mounting Hole Diameter | 0.24 in |
| Horsepower @ Three Phase - 600V AC | 15 HP |
| NEMA Enclosure Material | Not Applicable |
| Mounting Hole Distance - Height | 3-1/4 in |
| Mounting Postion | Vertical, Horizontal |
| Frame Size | E |
| Frequency | 50/60 Hz |
| Auxiliary Contact Module Capacity | 4 |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Full Load Current - Resistive | 35 A |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Maximum Voltage Rating | 690 V AC |
| Mounting Hole Distance - Width | 1-3/4 in |
| Fluorescent Lighting Current Rating | Not Applicable |
| Full Load Current - Inductive | 25 A |
| Maximum Operating Temperature | 158 deg F |
| LED Lighting Current Rating | 35 A |
| Overall Depth | 3.38 in |
| Overall Width | 2.68 in |
| Contactor Style | HVACR Definite Purpose Contactor |
| Package Quantity | 1 |
