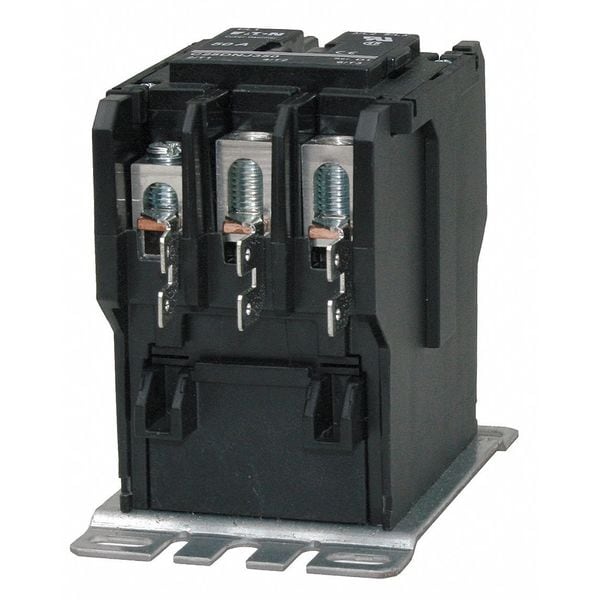

Contactor para propósito definido de 208/240VCA no reversible de 3 polos 75A.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 75 A |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 90 A |
| Number of Poles | 3 |
| Coil Volts | 208/240V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 5 hp |
| HP @ 1 Phase - 230V | 15 |
| HP @ 3 Phase - 230V | 20 |
| Height | 3-3/4 in |
| HP @ 1 Phase - 240V | 15 hp |
| Width | 2.4 in |
| HP @ 3 Phase - 240V | 20 hp |
| HP @ 3 Phase - 575V | 50 hp |
| Depth | 3-3/4 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 50 hp |
| Enclosure Type | Open |
| Includes | Mounting Plate |
| Standards | CSA, RoHS, UL Listed |
| Hz | 50/60 |
| Series | C25 Series |
| Weight | 2.66 lb |
| Phase | Three |
| Auxiliary Contact Module Capacity | 4 |
| Full Load Current - Inductive | 75 A |
| Full Load Current - Resistive | 90 A |
| Minimum Operating Temperature | -13 deg F |
| Tungsten Lighting Current Rating | Not Applicable |
| Reversing Capability | Non-Reversing |
| NEMA Enclosure Material | Not Applicable |
| Terminal Connection Type | Terminals |
| Mounting Postion | Vertical, Horizontal |
| Overall Width | 2.63 in |
| Horsepower @ Three Phase - 240V AC | 20 HP |
| Input Control Type | 2-Wire |
| Frame Size | F |
| Horsepower @ Single Phase - 240V AC | 15 HP |
| Horsepower @ Three Phase - 208V AC | 20 HP |
| LED Lighting Current Rating | 90 A |
| Number of Normally Open Main Contacts | 1 |
| Includes Shunt | Not Applicable |
| Number of Normally Closed Main Contacts | 1 |
| Horsepower @ Single Phase - 120V AC | 5 HP |
| Fluorescent Lighting Current Rating | Not Applicable |
| Mounting Hole Distance - Width | 2 in |
| Contactor Style | HVACR Definite Purpose Contactor |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Hole Distance - Height | 3-1/4 in |
| Locked Rotor Load | 360 A @ 230V |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 480V AC | 50 HP |
| Coil Voltage | 208-240V AC |
| Maximum Operating Temperature | 158 deg F |
| Overall Depth | 3.97 in |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Maximum Voltage Rating | 690 V AC |
| Overall Height | 3-3/4 in |
| Package Quantity | 1 |
