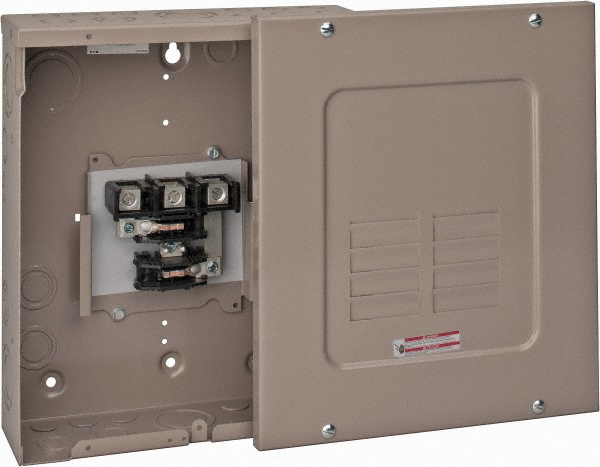

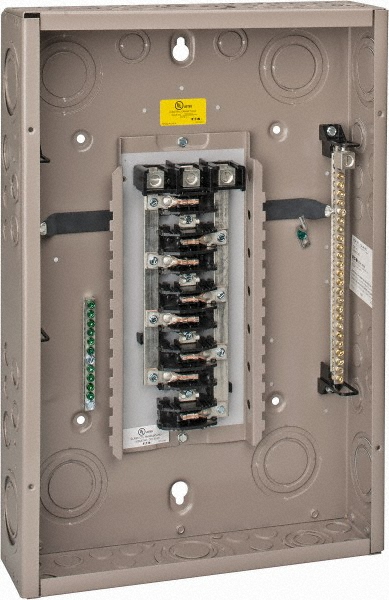

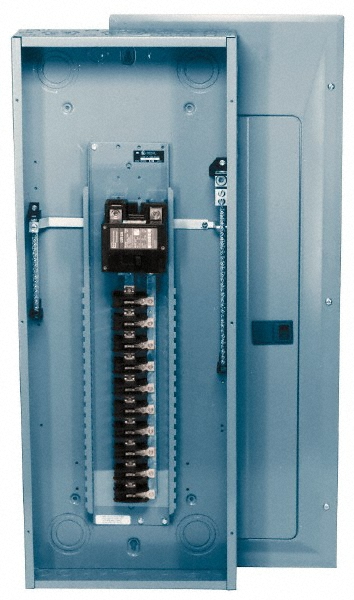

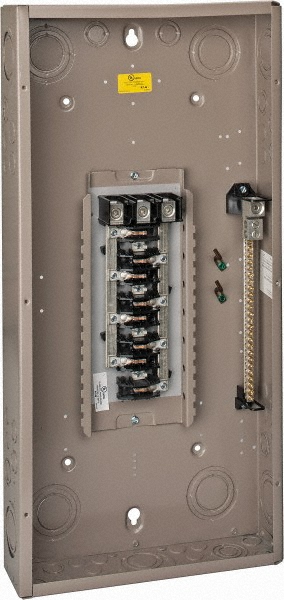

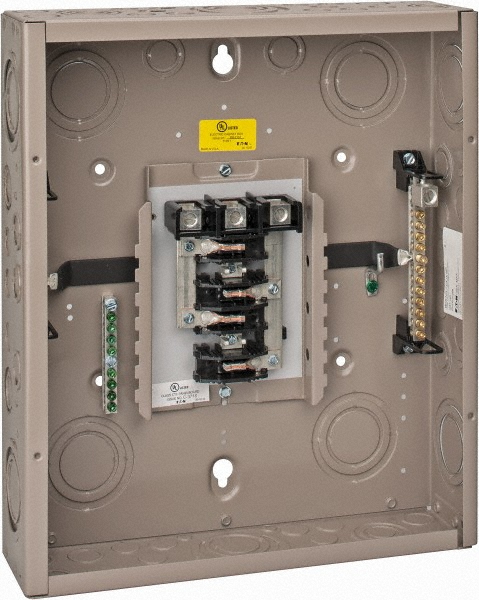

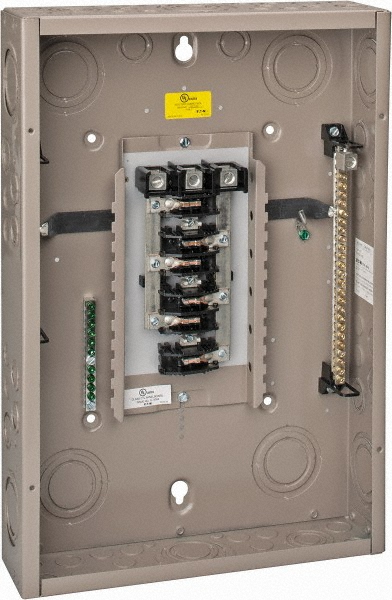

3 Phase, 1 NEMA Rating, 14.31 Inch Wide x 3.88 Inch Deep x 21 Inch High
| Load Center Type | Main Lug |
|---|---|
| Number of Circuits | 24 |
| Main Amperage | 125 |
| Number of Phases | 3 |
| Voltage | 208/120V AC |
| NEMA Enclosure Rating | 1 |
| Body Material | Steel |
| Circuit Breaker Installation Type | Plug-in |
| Overall Depth (Decimal Inch) | 3.8800 |
| Overall Depth (mm) | 98.40 |
| Overall Height (Decimal Inch) | 21 |
| Overall Height (mm) | 533.40 |
| Overall Width (Decimal Inch) | 14.3100 |
| Overall Width (mm) | 363-1/2 |
| Wire Size (AWG) | 6-2/0 |
| Recommended Environment | Indoor |
| Standards Met | CSA E51287 Certified; Federal Specification W-C 375 b/Gen; UL 489; CSA E3624 Certified; EC Article 373.8; CSA File LR87196 Certified; UL Listed File E11713; NEMA; UL Listed File E8741 |
| UNSPSC Code | 39121100 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 00104117 |
