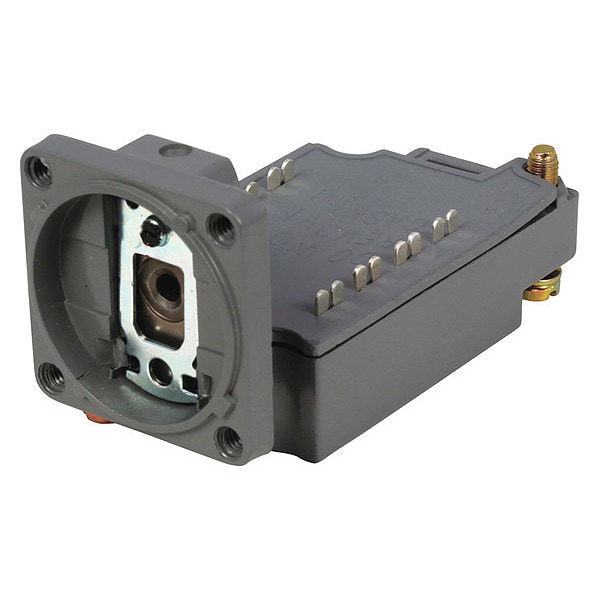

Cuerpo del Interruptor de Límite Cutler-Hammer 2NC/2NO Nema 1, 2, 4, 6, 6P, 12, 13
| Item | Limit Switch Body |
|---|---|
| For Use With | E50 Limit Switch |
| Contact Form | 2NO/2NC |
| AC Contact Rating | 10 A @ 12 V |
| DC Contact Rating | 1 A @ 125 V |
| IP Rating | IP67 |
| Operating Temp. | -40 to 221 deg F |
| Electrical Connection | Not Applicable |
| Standards | CSA, RoHS, UL Listed |
| NEMA Rating | 1, 12, 13, 2, 4, 6, 6P |
| Material | Zinc |
| Series | E50 heavy duty plug in |
| Operating temperature - min | -40°F |
| Product Height | 1.73 in |
| Maximum DC current | 1 A |
| Environmental rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67 |
| Product Width | 1.54 in |
| Contact configuration | 2 NO-2 NC |
| Number Of Poles | Two-pole |
| Product Length/Depth | 3.14 in |
| Certifications | CSA Certified |
| Contact Rating | 10A at 12 Vac, 1A at 125 Vdc |
| Operating temperature - max | 250°F |
| Maximum AC current | 10 A |
| Enclosure material | Die cast zinc |
| Operating Temperature - Maximum | 250 deg F |
| Mounting Hole Horizontal Center to Center Distance | 30 mm |
| Overall Depth | 3.14 in |
| Overall Width | 1.54 in |
| Indicating Light | No Indicating Light Included |
| Manufacturer Warranty Length | 1 yr |
| NEMA Enclosure Rating | 1, 13, 3, 3S, 4, 4X, 6, 6P |
| Overall Height | 1.73 in |
| Operating Temperature - Minimum | -40 deg F |
| Number of Mounting Holes | 2 |
| Compatible with Series | E50 |
| Body Configuration | Plug-In |
| Mounting Hole Diameter | 0.2 in |
| Mounting Hole Vertical Center to Center Distance | 60 mm |
| Package Quantity | 1 |
