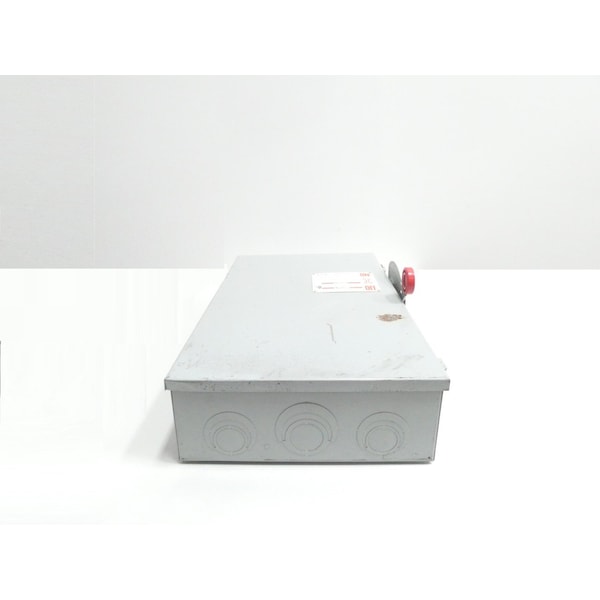

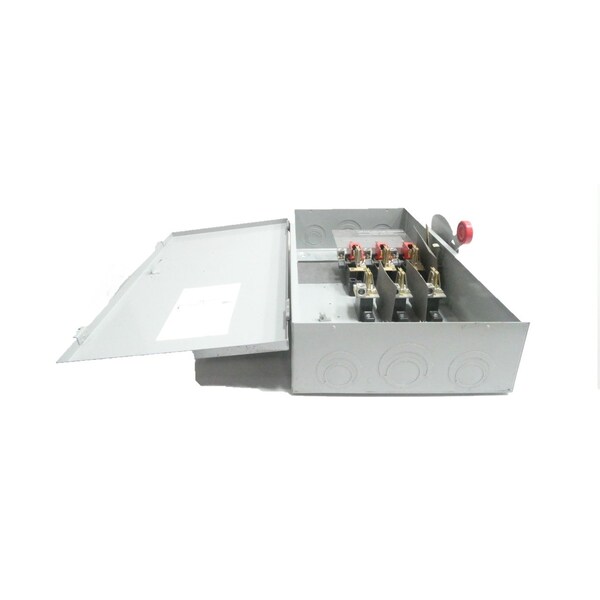

Interruptor de desconexión de fusible de 3 polos, 200 amperios, 600 voltios de corriente alterna.
| Type | Heavy duty fusible safety switch |
|---|---|
| Number of Poles | Three-pole |
| Product Width | 18 in |
| Enclosure Material | Painted steel |
| Hp Rating - Max | 50, 50/ 125, 150 hp (1/3PH @480, 600 V) |
| Product Name | Eaton custom single-throw fused safety switch |
| Fuse Class Provision | Class H |
| Fuse Configuration | Fusible without neutral |
| Number of Wires | 3 |
| Product Length/Depth | 30 in |
| Voltage Rating | 600 V |
| Product Height | 9-1/2 in |
| Enclosure | NEMA 1 |
| Amperage Rating | 200A |
| Certifications | UL Listed |
| Package Quantity | 1 |
