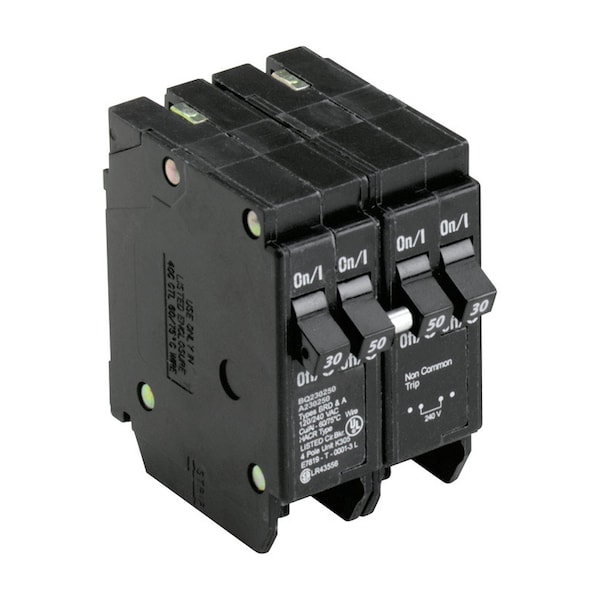

Circuit Breaker, BQ Series, 30/50A, 4 Pole, 120/240V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Series | BQ |
| Amps | 30/50A |
| Number of Poles | 4 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Mounting Style | Plug On |
| Max. AIR Rating | 10kA |
| Trip Type | Independent |
| Width | 3-1/2 in |
| Depth | 2.4 in |
| Height | 3.3 in |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 4 AWG (Cu/Al) |
| Min. Wire Size | 14 AWG (Cu/Al) |
| Interrupt Rating | 10 kA |
| Features | Rejection Tab Feature |
| For Use With | Type BR Loadcenters |
| Package Quantity | 1 |
