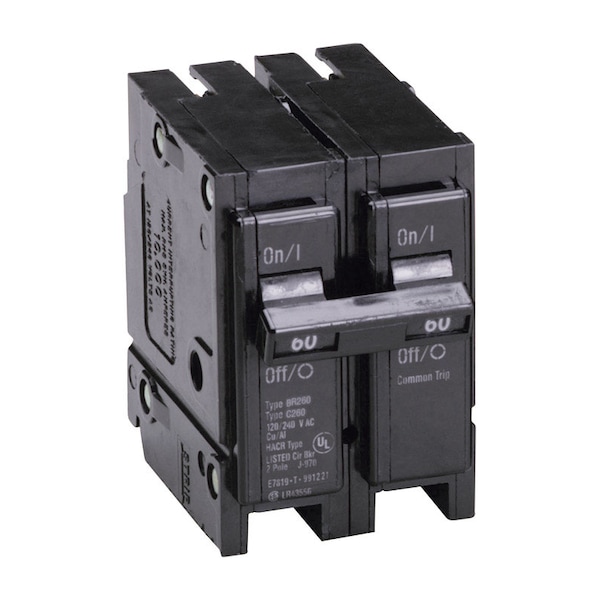

Circuit Breaker, BR Series, 60A, 2 Pole, 120/240V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Series | BR |
| Amps | 60A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Mounting Style | Plug On |
| Max. AIR Rating | 10kA |
| Trip Type | Common |
| Width | 2.9 in |
| Depth | 1.9 in |
| Height | 2-1/2 in |
| DC Voltage Rating | Not Rated |
| Standards | UL 489 |
| Min. Wire Size | 8 AWG (Cu/Al) |
| Interrupt Rating | 10 kA |
| Max. Wire Size | 1/0 AWG (Cu/Al) |
| For Use With | Type BR Loadcenters |
| Compliances | Federal Specifications Classification W-C375 |
| Product Name | Eaton BR thermal magnetic circuit breaker |
| Wire Size | #8-1/0 AWG Cu/Al |
| Package Quantity | 1 |
