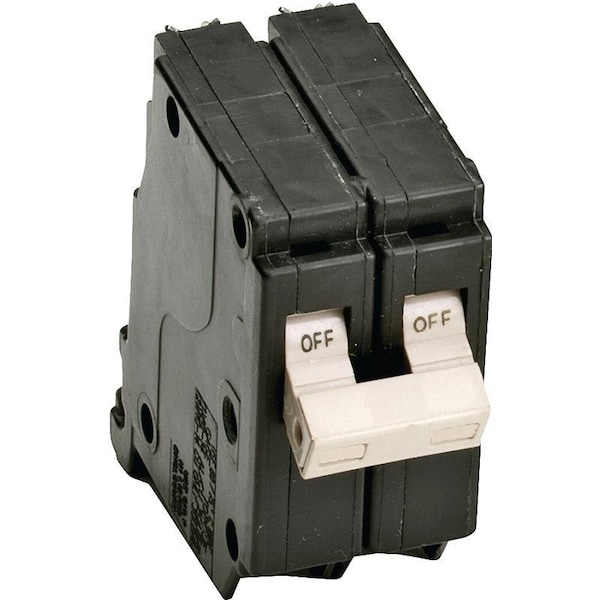

Circuit Breaker, CH Series, 70A, 2 Pole, 120/240V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Series | CH |
| Amps | 70A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Max. AIR Rating | 10kA |
| Trip Type | Common |
| Width | 3.2 in |
| Depth | 1-1/2 in |
| Height | 2.6 in |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 2 AWG (Cu/Al) |
| For Use With | Type CH Loadcenters |
| Min. Wire Size | 14 AWG (Cu/Al) |
| Interrupt Rating | 10 kA |
| Standards | UL 489 |
| Package Quantity | 1 |
