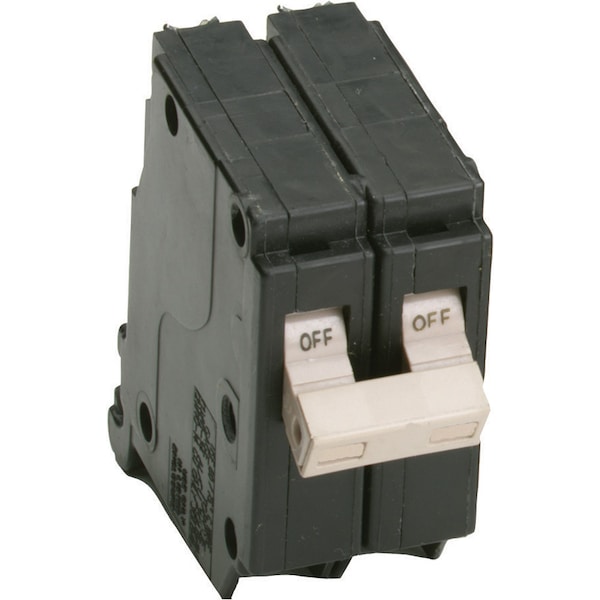

Circuit Breaker, CHF Series, 30A, 2 Pole, 120/240V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Series | CHF |
| Amps | 30A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Max. AIR Rating | 10kA |
| Trip Type | Trip Flag |
| Width | 3/4 in |
| Depth | 1-1/2 in |
| Height | 2.6 in |
| DC Voltage Rating | Not Rated |
| For Use With | Type CH Loadcenters |
| Max. Wire Size | 8 AWG |
| Min. Wire Size | 14 AWG |
| Standards | UL 489, HACR Rated |
| Interrupt Rating | 10 kA |
| Wire Size | (1) #14-8 AWG;(2) #14-10 AWG Cu/Al |
| Product Width | 3/4 in |
| Product Name | circuit breaker |
| Certifications | UL 489 |
| Compliances | HACR Rated |
| Package Quantity | 1 |
