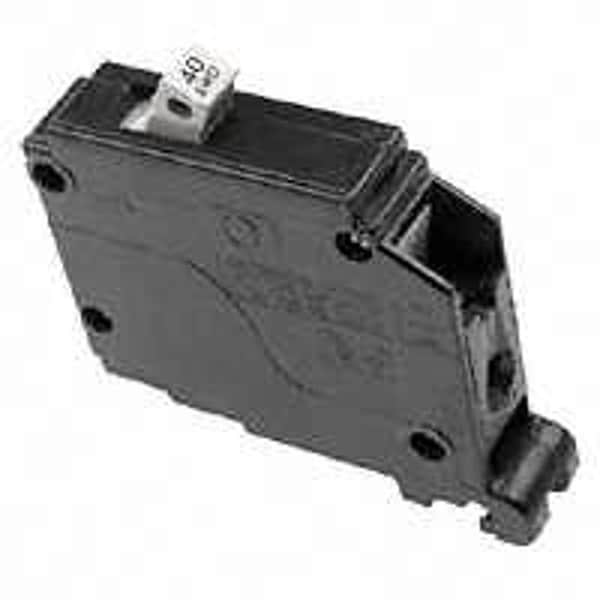

Circuit Breaker, CHF Series, 40A, 1 Pole, 120/240V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Series | CHF |
| Amps | 40A |
| Number of Poles | 1 |
| AC Voltage Rating | 120/240V AC |
| Max. AIR Rating | 10kA |
| Trip Type | Trip Flag |
| Width | 3/4 in |
| Depth | 3 in |
| Height | 3 in |
| DC Voltage Rating | Not Rated |
| Interrupt Rating | 10 kA |
| Min. Wire Size | 14 AWG (Cu/Al) |
| For Use With | Type CH Loadcenters |
| Max. Wire Size | 2 AWG (Cu/Al) |
| Standards | UL 489, HACR Rated |
| Package Quantity | 1 |
