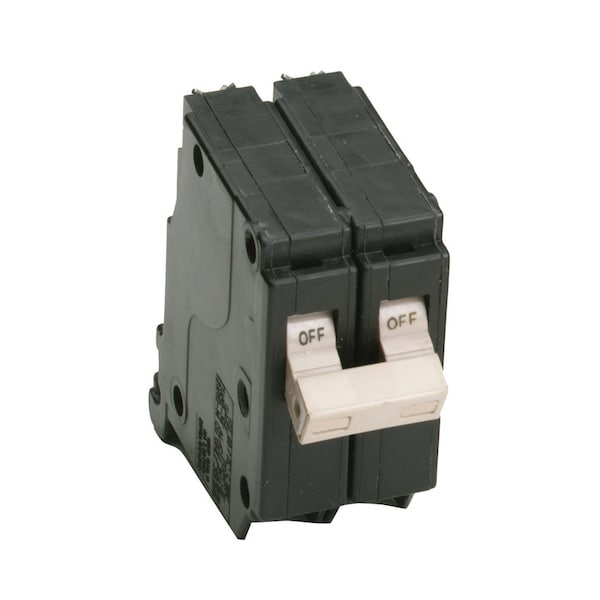

Circuit Breaker, CHF Series, 50A, 2 Pole, 120/240V AC, 10kA
| Item | Circuit Breaker |
|---|---|
| Series | CHF |
| Amps | 50A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Max. AIR Rating | 10kA |
| Trip Type | Trip Flag |
| Width | 4 in |
| Depth | 6 in |
| Height | 2 in |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 1/0 AWG (Cu/Al) |
| Standards | UL 489, HACR Rated |
| Min. Wire Size | 10 AWG Cu/Al |
| Interrupt Rating | 10 kA |
| For Use With | Type CH Loadcenters |
| Package Quantity | 1 |
