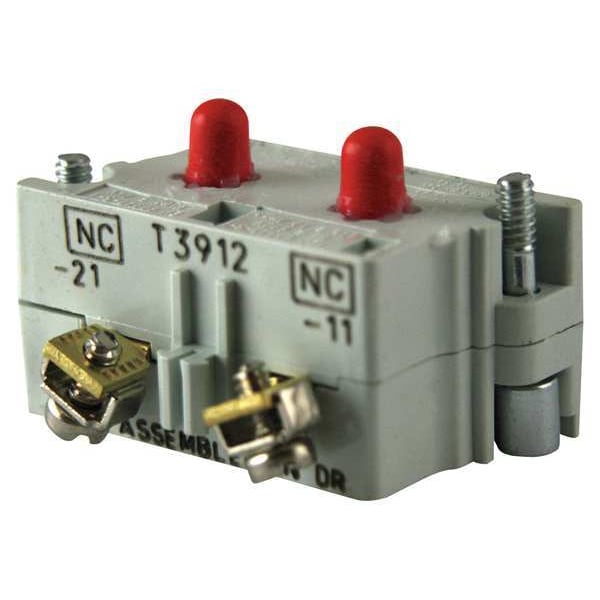

Bloque de Contacto Cutler-Hammer, 2NC, 30mm
| Item | Contact Block |
|---|---|
| Size | 30 mm |
| For Use With | Eaton 10250T 30mm Push Buttons and Indicating Lights |
| Color | Gray |
| Voltage | 660VAC/VDC |
| Contact Rating | 10A @ 660V AC/DC |
| Terminal Connection | Pressure Terminal |
| Contact Form | 2NC |
| Application | Operator |
| Standards | CE, CSA, UL Listed |
| NEMA Contact Rating Designation | A600, P600 |
| Action | Momentary |
| Type | 30.5 mm, Heavy-Duty |
| Series | 10250T |
| Product Width | 1.3 in |
| Product Length/Depth | 1.3 in |
| Terminals | Pressure |
| Product Height | 2.3 in |
| Compliances | CE Marked |
| Contact configuration | 2 NC (standard) |
| Certifications | UL Listed |
| Product Name | Eaton 10250T pushbutton contact block |
| Manufacturer Warranty Length | 1 yr |
| AC Contact Rating | 10 A @ 660 V |
| DC Contact Rating | 10 A @ 600 V |
| Connection Size | 30 mm |
| Switch Action | Momentary |
| Compatible Operator | Push Button |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible with Series | 10250T, E34 |
| Includes Mounting Block | Mounting Block Included |
| Package Quantity | 1 |
