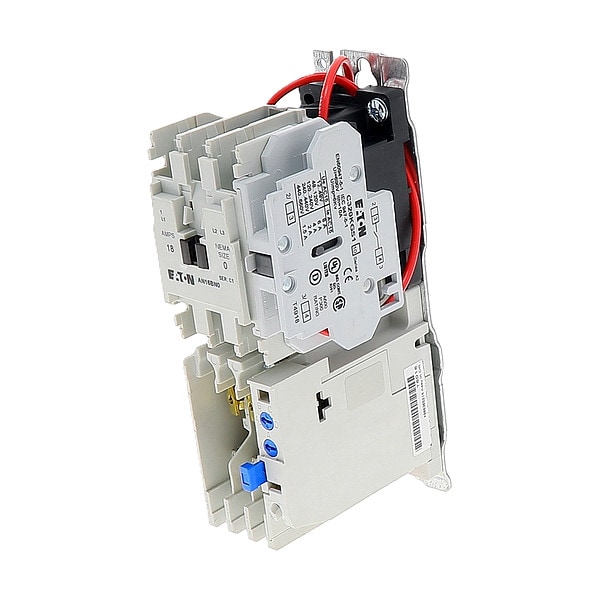

Contactor, 120V 18A 3P W/ Aux
| Item | IEC Magnetic Motor Starter |
|---|---|
| Phase | Three |
| Standards | CSA Certified, UL Listed |
| Maximum Overload Relay Current Setting | Not Applicable |
| Overall Depth | 4.61 in |
| Mounting Style | Bracket |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Overall Width | 4.38 in |
| Minimum Overload Relay Current Setting | Not Applicable |
| Frequency | 50/60 Hz |
| Coil Voltage | 110/120V AC |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Current AC | 18 A |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Hazardous Location Specification | Not Applicable |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Mounting Hole Distance - Height | 6.07 in |
| Auxiliary Contact Module Capacity | 1 |
| Maximum Voltage Rating | 600V AC |
| NEMA Size | 0 |
| Number of Poles | 3 |
| Frame Size | S0 |
| Trip Class | 10/20 |
| Series | Freedom |
| Operator Function | Not Applicable |
| Overall Height | 3.31 in |
| Mechanical Operating Durability | 3,000,000 |
| Starter Style | NEMA |
| Number of Auxillary Contacts | 1 |
| Auxiliary Contact Form | 1NO |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Reversing Capability | Non-Reversing |
| Mounting Postion | Horizontal |
| Operator | None |
| Overload Protection Type | Thermal |
| Includes Auxiliary Contacts | Yes |
| Country of Origin (subject to change) | Bulgaria |
| Package Quantity | 1 |
