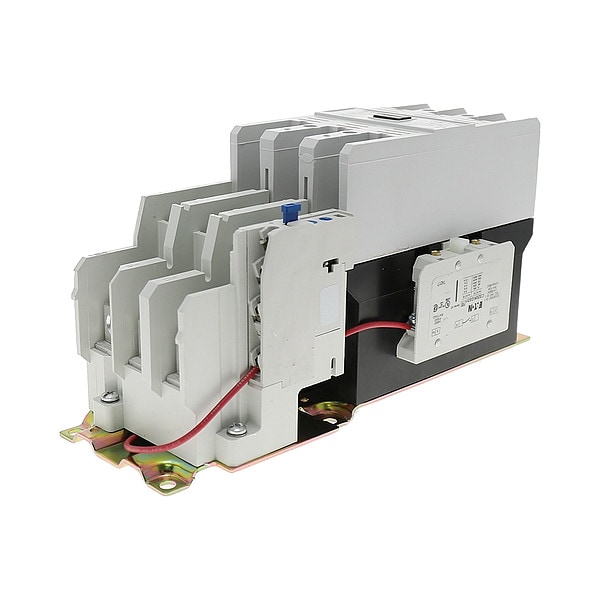

Contactor, 120V Motor Starter
| Item | IEC Magnetic Motor Starter |
|---|---|
| Phase | Three |
| Standards | CSA Certified, UL Listed |
| Overall Height | 11.35 in |
| Overall Width | 4.08 in |
| Operator | None |
| Overall Depth | 5.94 in |
| Mounting Style | Bracket |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 240V AC | 30 HP |
| Reversing Capability | Non-Reversing |
| Frame Size | S3 |
| Maximum Overload Relay Current Setting | Not Applicable |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 480V AC | 50 HP |
| Mounting Hole Diameter | 0.25 in |
| Includes Auxiliary Contacts | Yes |
| Maximum Voltage Rating | 600V AC |
| Number of Poles | 3 |
| Operator Function | Not Applicable |
| Auxiliary Contact Module Capacity | 1 |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Mechanical Operating Durability | 3,000,000 |
| NEMA Size | 3 |
| Mounting Hole Distance - Width | 3 in |
| Mounting Postion | Horizontal |
| Minimum Overload Relay Current Setting | Not Applicable |
| Overload Protection Type | Thermal |
| Mounting Hole Distance - Height | 10.81 in |
| Horsepower @ Three Phase - 208V AC | 25 HP |
| Coil Voltage | 110/120V AC |
| Hazardous Location Specification | Not Applicable |
| Auxiliary Contact Form | 1NO |
| Series | Freedom |
| Number of Auxillary Contacts | 1 |
| Trip Class | 10/20 |
| Horsepower @ Single Phase - 240V AC | Not Applicable |
| Horsepower @ Single Phase - 120V AC | Not Applicable |
| Starter Style | NEMA |
| Current AC | 90 A |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
