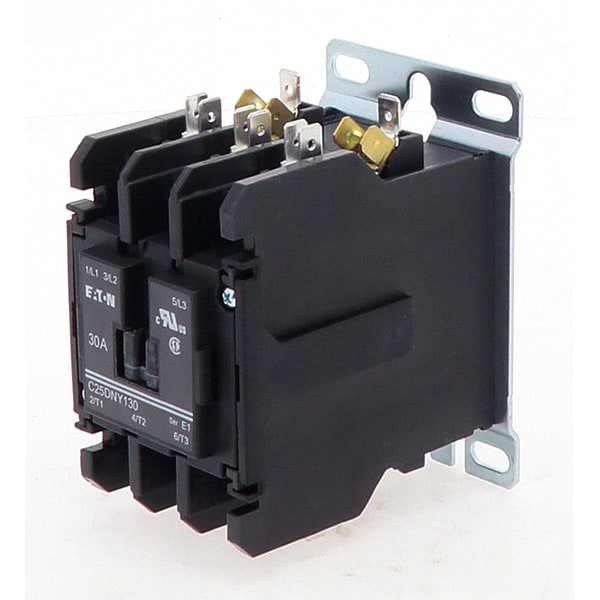

Contactor, 208-240V, 30A, 3P
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Phase | Three |
| Standards | CSA, UL Listed |
| Height | 3-3/4 in |
| Width | 2.4 in |
| Coil Volts | 208/240V AC |
| Full Load Amps-Resistive | 40 A |
| Enclosure NEMA Rating | 1 |
| Number of Poles | 3 |
| Full Load Amps-Inductive | 30 A |
| Coil Voltage | 208/240V AC |
| Frame Size | A |
| Tungsten Lighting Current Rating | Not Applicable |
| Overall Height | 3.19 in |
| Contactor Style | HVACR Definite Purpose Contactor |
| Includes Shunt | Not Applicable |
| NEMA Enclosure Rating | No Enclosure |
| LED Lighting Current Rating | Not Applicable |
| Full Load Current - Resistive | 40 A |
| Overall Depth | 2.32 in |
| Fluorescent Lighting Current Rating | Not Applicable |
| Overall Width | 1.97 in |
| Full Load Current - Inductive | 30 A |
| Reversing Capability | Non-Reversing |
| Series | C25 Series |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
