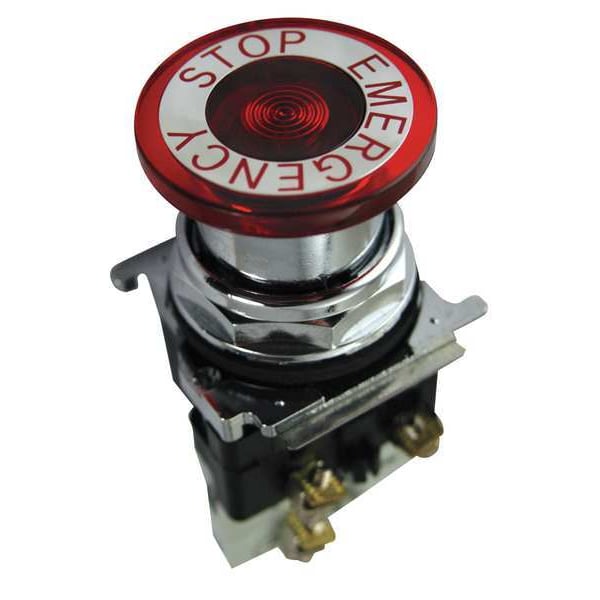

Botón de paro de emergencia iluminado Cutler-Hammer
| Item | Emergency Stop Push Button |
|---|---|
| Size | 30 mm |
| Legend | Emergency Stop |
| Features | Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs |
| Color | Red |
| Voltage | 120V AC/DC |
| Standards | CE, CSA, UL Listed |
| Lamp Type | LED |
| IP Rating | IP65 |
| Contact Form | 1NC |
| Lamp Module Type | Transformer |
| Terminal Connection | Screw Clamp |
| Contact Rating | 10A @ 600V AC/DC |
| Bezel | Chrome Plated Zinc Die Cast |
| Head Material | Metal |
| Lamp Voltage | 120 |
| Type of Operator | 40mm Mushroom Head |
| Contact Type | Late Open 1NC |
| Basic Material | Metal |
| NEMA Rating | 12, 13, 3, 3R, 4, 4X |
| Lamp Module Voltage | 120V AC/DC |
| Action | Maintained |
| Product Type | Emergency Stop Push Buttons |
| Number of Operators | 1 |
| Bezel Material | Chrome Plated Zinc Die Cast |
| Type | 30.5 mm, Heavy-Duty |
| Light unit voltage | 120 Vac |
| Number of positions | 2 |
| Light unit type | LED, transformer |
| Certifications | CSA Certified |
| Actuator color | Red |
| Compliances | CE Marked |
| Product Height | 3-1/2 in |
| Bus material | Plastic |
| Actuator | Standard |
| Series | 10250T |
| Illumination | Illuminated |
| Product Width | 2-1/2 in |
| Contact configuration | 1 LONC |
| Rating | NEMA 13 |
| Product Length/Depth | 2 in |
| Operating Mode | Pull: maintained |
| Product Name | Eaton 10250T pushbutton |
| Operator Material | Plastic |
| Operating Temperature - Minimum | 1 deg F |
| Head Color | Red |
| Panel Cutout Diameter | 30 mm |
| Push Button Style | Mushroom Head |
| DC Contact Rating | 5 A @ 250 V |
| AC Contact Rating | 10 A @ 600 V |
| Mushroom Head Diameter | 40 mm |
| Operating Temperature - Maximum | 150 deg F |
| NEMA Enclosure Rating | 4X, 12, 4, 3, 3R, 13 |
| Lamp Voltage - Maximum | 120 V AC |
| Resistance Properties | Oil and Grease Resistant, Watertight |
| Legend Color | White |
| Operator Illumination | Illuminated |
| Number of Indicator Lights | 0 |
| Legend Background Color | Red |
| Overall Depth | 2 in |
| Manufacturer Warranty Length | 1 yr |
| Overall Height | 3-1/2 in |
| Operator Voltage Rating - Maximum | 120 V AC/DC |
| Mechanical Operating Durability | 1.00 x 10^7 |
| Maintained Action Release | Push, Pull |
| Overall Width | 2-1/2 in |
| Package Quantity | 1 |
