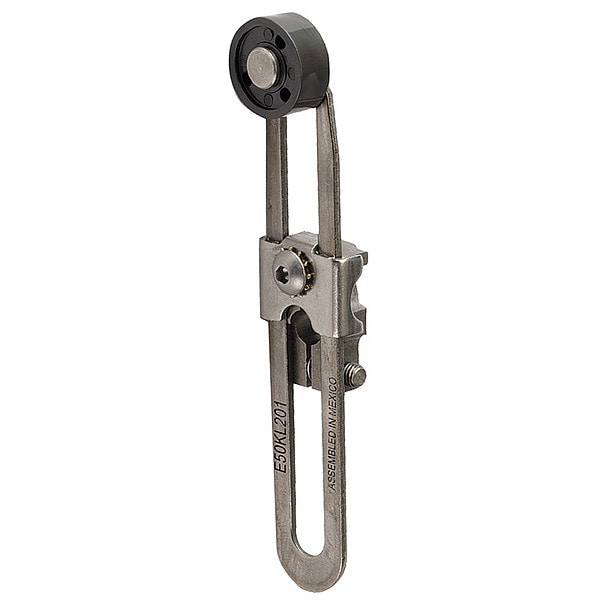

Brazo del interruptor de límite Cutler-Hammer, rodillo, 1 a 3.75 pulgadas de largo.
| Item | Limit Switch Lever Arm |
|---|---|
| Type | Accessory |
| Material | Nylatron |
| For Use With | E50AR16P, Mfr. No. E50AR1 |
| Arm Length | 1.00 in to 3.75 in |
| Roller Width | 1 in |
| Arm Material | Nylon |
| Actuator Type | Adjustable Roller |
| Roller Position | Front |
| Roller Dia. | 3/4 in |
| Arm Width | 3/4 in |
| Roller Material | Nylon |
| Arm Depth | 4.6 in |
| Standards | CE, CSA, RoHS, UL Listed |
| IP Rating | IP67 |
| Actuator Style | Rotary Lever Roller |
| Series | E50 |
| Operating temperature - max | 200°F |
| Environmental rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67 |
| Product Height | 1.52 in |
| Used with | Used with side rotary |
| Operating temperature - min | 10°F |
| Certifications | UL Listed |
| Actuator | roller |
| Product Length/Depth | 4.6 in |
| Torque rating | 3.10 in-oz min return |
| Product Width | 3/4 in |
| Arm Length - Maximum | 3-3/4 in |
| Compatible with Brand | Eaton |
| Manufacturer Warranty Length | 1 yr |
| Roller Adjustability | Adjustable |
| Arm Adjustability | Adjustable |
| Operating Temperature - Maximum | 200 deg F |
| Roller Diameter | 3/4 in |
| Arm Length - Minimum | 1 in |
| NEMA Enclosure Rating | 1, 13, 3, 4, 6, 4X, 3S, 6P |
| Compatible with Series | E50 |
| Operating Temperature - Minimum | 10 deg F |
| Compatible with Manufacturer Model Number | E50AR1, E50AR16P |
| Compatible Manufacturer Part Number | E50AR1, E50AR16P |
| Compatible Manufacturer Model Number | E50AR1, E50AR16P |
| Package Quantity | 1 |
