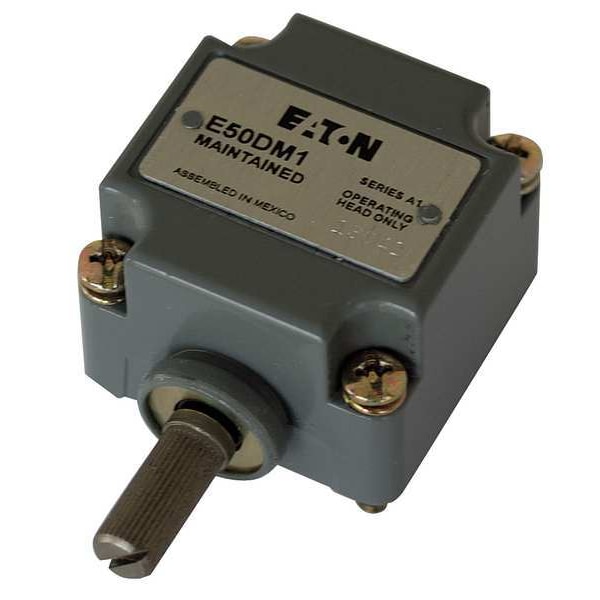

Cabeza de Interruptor de Límite Cutler-Hammer, Palanca Rotativa, Lateral, .63 Pulgadas
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Rotary Lever |
| Actuator Location | Side |
| Actuator Length | 0.63 in |
| Contact Form | Not Applicable |
| For Use With | Mfr. No. E50SA |
| NEMA Rating | 1, 12, 13, 2, 4, 4X, 6P |
| Movement | CCW, CW |
| Operating Force | 2.2 N |
| Travel | Operating Travel 50 Degrees , Reset Travel 50 Degrees , Total Travel 90 Degrees |
| Standards | CSA, RoHS, UL Listed |
| Description/Special Features | Maintained |
| IP Rating | IP67 |
| Operating Temp. | 14 to 200 deg F |
| Amps | 10 |
| Voltage Rating | 600V AC |
| Product Length/Depth | 1.05 in |
| Operating temperature - min | 14°F |
| Actuator | Side rotary, maintained 2 position |
| Certifications | UL Recognized |
| Product Height | 2.46 in |
| Enclosure material | Die cast zinc |
| Series | E50 |
| Product Width | 1.54 in |
| Operating temperature - max | 201°F |
| Environmental rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67 |
| Product Name | Eaton E50 NEMA heavy duty plug-in limit switch |
| Action | Maintained |
| Includes Actuator | No Actuator Included |
| Plunger Adjustability | Not Applicable |
| Arm Material | Not Applicable |
| Operating Temperature - Minimum | 14 deg F |
| Compatible with Series | E50 |
| Differential Travel | 90 Degrees |
| Roller Material | Not Applicable |
| Pretravel | 5 Degrees |
| NEMA Enclosure Rating | 1, 13, 3, 3S, 4, 4X, 6, 6P |
| Reset Travel | 50 Degrees |
| Compatible with Manufacturer Model Number | E50SA |
| Overall Height | 2.46 in |
| Directional Movement | CCW, CW |
| Overtravel | 50 Degrees |
| Roller Adjustability | Not Applicable |
| Roller Diameter | Not Applicable |
| Total Travel | 90 Degrees |
| Operating Temperature - Maximum | 201 deg F |
| Arm Adjustability | Not Applicable |
| Roller Width | Not Applicable |
| Arm Length - Maximum | 0.63 in |
| Compatible with Brand | Eaton |
| Arm Length - Minimum | Not Applicable |
| Roller Position | Not Applicable |
| Operating Torque | 3 in-lb |
| Manufacturer Warranty Length | 1 yr |
| Overall Width | 1.54 in |
| Overall Depth | 1.05 in |
| Compatible Manufacturer Part Number | E50SA |
| Compatible Manufacturer Model Number | E50SA |
| Package Quantity | 1 |
