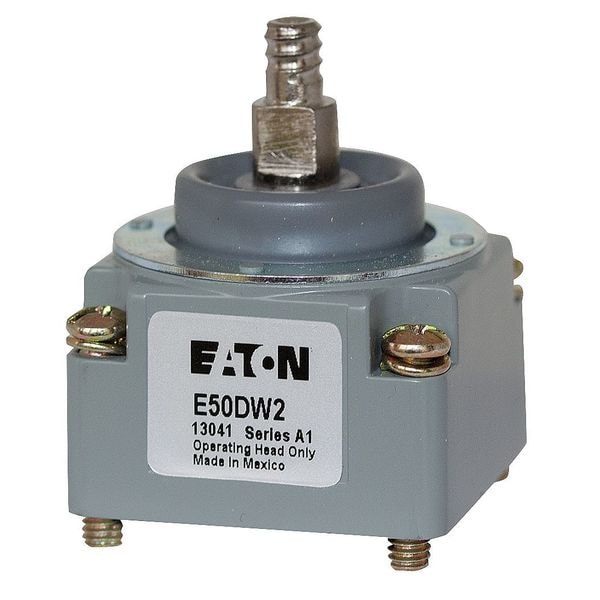

Cabeza de interruptor limitador de Cutler-Hammer, cabeza de tipo Wskr, superior, 1.10 pulgadas.
| Item | Limit Switch Head |
|---|---|
| Actuator Style | Wobble Stick |
| Actuator Location | Top |
| Actuator Length | 1.1 in |
| Contact Form | Not Applicable |
| For Use With | Mfr. No. E50SA |
| NEMA Rating | 1, 12, 13, 2, 4, 4X, 6P |
| Movement | CCW, CW |
| Voltage Rating | 600V AC |
| Operating Temp. | 14 to 221 deg F |
| Operating Force | 0.67 N |
| Travel | Operating Travel 10 Degrees , Reset Travel 6 Degrees , Total Travel 15 Degrees |
| Amps | 10 |
| IP Rating | IP67 |
| Description/Special Features | Momentary |
| Standards | CSA, RoHS, UL Listed |
| Product Length/Depth | 1.85 in |
| Product Height | 1.78 in |
| Material | Heavy duty high strength steel |
| Product Width | 1.54 in |
| Series | E50 |
| Actuator | Wobble head, spring return |
| Operating temperature - min | 14°F |
| Operating temperature - max | 201°F |
| Environmental rating | NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67 |
| Enclosure material | Die cast zinc |
| Certifications | CSA Certified |
| Product Name | Eaton E50 NEMA heavy duty plug-in limit switch |
| Operating Temperature - Minimum | 14 deg F |
| Action | Momentary |
| Arm Length - Minimum | Not Applicable |
| Roller Width | Not Applicable |
| Includes Actuator | No Actuator Included |
| Overall Height | 1.78 in |
| Differential Travel | 15 Degrees |
| Overall Width | 1.54 in |
| Manufacturer Warranty Length | 1 yr |
| Pretravel | 5 Degrees |
| Overtravel | 10 Degrees |
| Roller Material | Not Applicable |
| Compatible with Brand | Eaton |
| Arm Material | Not Applicable |
| Operating Temperature - Maximum | 201 deg F |
| Arm Adjustability | Not Applicable |
| Roller Position | Not Applicable |
| NEMA Enclosure Rating | 1, 13, 3, 3S, 4, 4X, 6, 6P |
| Roller Diameter | Not Applicable |
| Roller Adjustability | Not Applicable |
| Overall Depth | 1.85 in |
| Operating Torque | 2 in-lb |
| Total Travel | 15 Degrees |
| Compatible with Manufacturer Model Number | E50SA |
| Plunger Adjustability | Not Applicable |
| Reset Travel | 6 Degrees |
| Arm Length - Maximum | Not Applicable |
| Compatible with Series | E50 |
| Directional Movement | Omnidirectional |
| Compatible Manufacturer Part Number | E50SA |
| Compatible Manufacturer Model Number | E50SA |
| Package Quantity | 1 |
